Product Details:
|
| Product: | FRP PP Honeycomb Panel | Skin Finish: | Embossed FRP Skin |
|---|---|---|---|
| Core: | Polypropylene Core | Thickness: | 6-100mm |
| Application: | Wall Floor And Celing | Color: | RAL Color Or Pantone |
| Bonding: | Negative Pressure | Gelcoat: | Yes |
| High Light: | Embossed FRP Ceiling Panels,Honeycomb Core FRP Ceiling Panels,Honeycomb Core FRP Fiberglass Reinforced Panels |
||

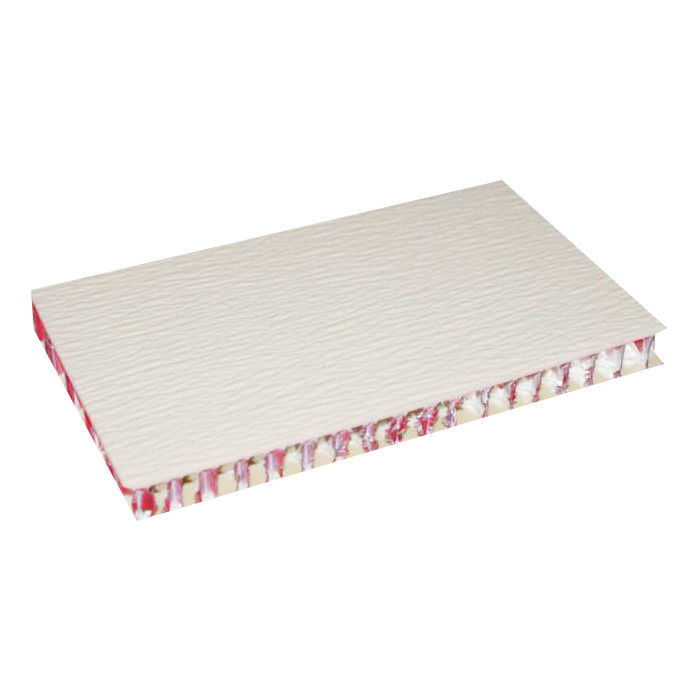

Embossed FRP PP Honeycomb Sandwich Panel For Wall,Ceiling,Floor
WDF’s fiberglass reinforced panels can be easily manufactured using a wide variety of core materials.
The most popular and highest growing segment of fiberglass reinforced panels have become the polypropylene (PP) honeycomb core FRP. It provides an extremely durable panel at approximately one-half the weight of the plywood core FRP panels.
Panel Composition
|
Item
|
FRP PP Honeycomb Panel
|
|
Core Material
|
pp Honeycomb
|
|
FRP Thickness
|
1-3mm
|
|
Core thickness
|
5-100mm
|
|
Width
|
≤3000mm
|
|
Length
|
≤12000mm
|
|
Features
|
Price: higher
Insulation: Middle
Strength: higher
|
Advantages
| No. | Item | Data | |
| 1 | Static strength Mpa≥ | 18 | |
| 2 | Elastic Modulus Mpa≥ | 1500 | |
| 3 | Barcol hardness ≥m2 | 40 | |
| 4 | Impact strength KJ/m2 | 50 | |
| 5 | Edgewise compressive strength Mpa≥ | 10 | |
| 6 | Flatwise tension strength Kpa≥ | 450 | |
| 7 | Flatwise compression strength Mpa≥ | 1.5 | |
| No. | Thickness of Panel (mm) | Weight (kg/m2) |
| 1 | 15 | 7.5 |
| 2 | 18 | 8 |
| 3 | 21 | 8.5 |
>> Refrigerator Van & Truck Body
>> Sentry box & Mobile Toilets
>> Caravan & RV Panel
>> Compartment & Partition Wall
>> Cattle Sheep Shed & Dog Kennel
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the raw materials are in stock. or it is 30-45 days if the raw materials are not in stock, based on quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge yet customers are expected to afford the shipping cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. .
