Product Details:
|
| Product: | FRP PP Honeycomb Panel | Skin Finish: | Nonslip Fiberglass Reinforced Plastic |
|---|---|---|---|
| Core: | PP Honeycomb | Thickness: | 6-100mm |
| Application: | Scaffolding And Walking Platform | Color: | RAL Color Or Pantone |
| Bonding: | Negative Pressure | Gelcoat: | With Or Without |
| High Light: | Antislip FRP Composite Panels,PP Honeycomb Core FRP Composite Panels,FRP PP Honeycomb Panel |
||

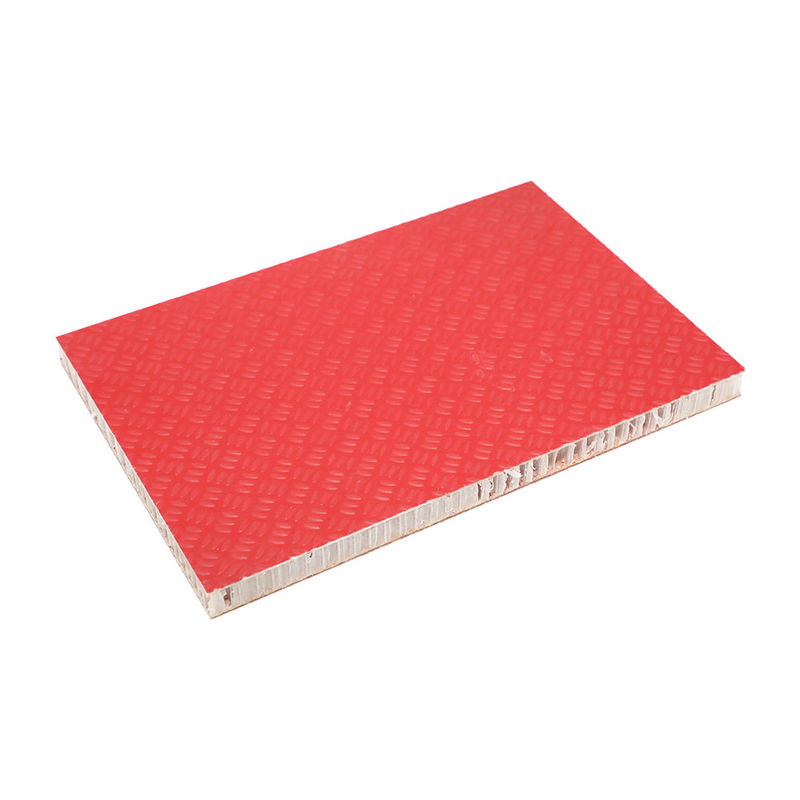

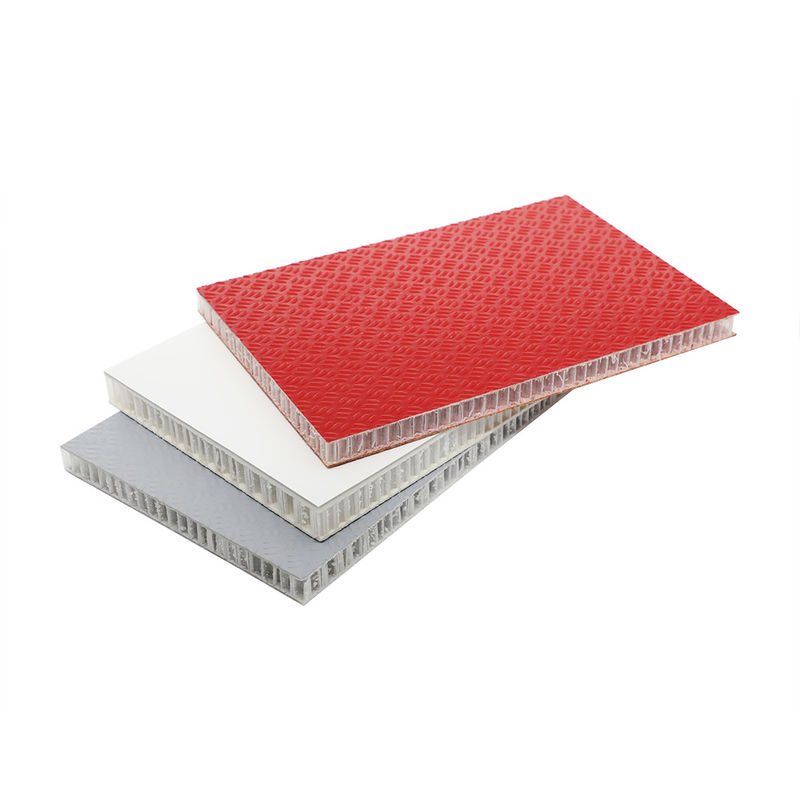

Antislip Pattern FRP PP Honeycomb Core Panel For Scaffolding And Walkplatform
Antislip FRP PP honeycomb Sandwish panel is composed of antislip FRP skin on top,smooth Fiberglass skin on bottom and PP Honeycomb
core as inside.It offers high strength with low weight ration .Meanwhile with its non-slip feature,it offers great secure when people stand there and
protect from fall.
Panel Composition
|
Item
|
Antlip FRP (also called GRP PP Honeycomb Panel
|
|
Core Material
|
pp Honeycomb
|
|
FRP Thickness
|
1-3mm
|
|
Core thickness
|
5-100mm
|
|
Width
|
≤3000mm
|
|
Length
|
≤12000mm
|
|
Features
|
Surface:Non-Slippery Price: higher Insulation: Middle
Strength: higher
|
Advantages
| No. | Item | Data | |
| 1 | Static strength Mpa≥ | 18 | |
| 2 | Elastic Modulus Mpa≥ | 1500 | |
| 3 | Barcol hardness ≥m2 | 40 | |
| 4 | Impact strength KJ/m2 | 50 | |
| 5 | Edgewise compressive strength Mpa≥ | 10 | |
| 6 | Flatwise tension strength Kpa≥ | 450 | |
| 7 | Flatwise compression strength Mpa≥ | 1.5 | |
Weight Info
| No. | Thickness of Panel (mm) | Weight (kg/m2) |
| 1 | 15 | 7.5 |
| 2 | 18 | 8 |
| 3 | 21 | 8.5 |
>> Refrigerator Van & Truck Body
>> Sentry box & Mobile Toilets
>> Caravan & RV Panel
>> Compartment & Partition Wall
>> Cattle Sheep Shed & Dog Kennel
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the raw materials are in stock. or it is 30-45 days if the raw materials are not in stock, based on quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge yet customers are expected to afford the shipping cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. .
