Place of Origin:
Foshan,China
Brand Name:
WDF
Certification:
ISO
Model Number:
WDF-FPHP
Contact Us

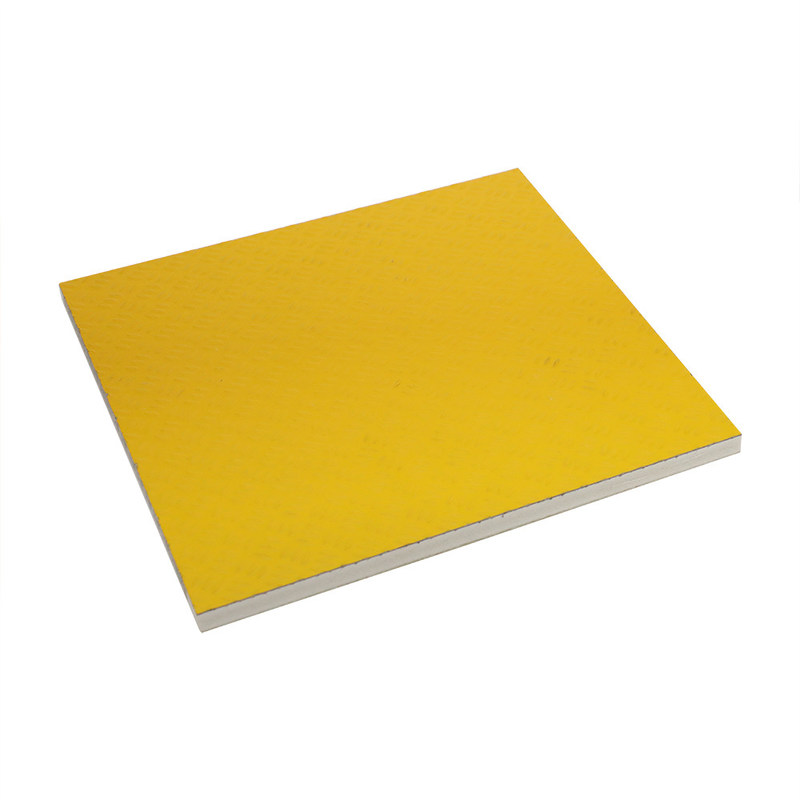

Nonslippery GRP PP Honeycomb Panel For Scaffolding And Decking
Antislip FRP PP honeycomb Sandwish panel is composed of antislip FRP skin on top,smooth Fiberglass skin on bottom and PP Honeycomb
core as inside.It offers high strength with low weight ration .Meanwhile with its non-slip feature,it offers great secure when people stand there and
protect from fall.
Panel Composition
|
Item
|
Non-slippery FRP (also called GRP PP Honeycomb Panel |
|
Core Material
|
Polypropylene Honeycomb Core
|
|
FRP Thickness
|
1-3mm
|
|
Core thickness
|
5-100mm
|
|
Width
|
≤3000mm
|
|
Length
|
≤12000mm
|
|
Features
|
Surface:Non-Antislip Price: higher Insulation: Middle
Strength: higher
|
Advantages
| No. | Item | Data | |
| 1 | Static strength Mpa≥ | 18 | |
| 2 | Elastic Modulus Mpa≥ | 1500 | |
| 3 | Barcol hardness ≥m2 | 40 | |
| 4 | Impact strength KJ/m2 | 50 | |
| 5 | Edgewise compressive strength Mpa≥ | 10 | |
| 6 | Flatwise tension strength Kpa≥ | 450 | |
| 7 | Flatwise compression strength Mpa≥ | 1.5 | |
Weight Info
| No. | Thickness of Panel (mm) | Weight (kg/m2) |
| 1 | 15 | 7.5 |
| 2 | 18 | 8 |
| 3 | 21 | 8.5 |
>> Refrigerator Van & Truck Body
>> Sentry box & Mobile Toilets
>> Caravan & RV Panel
>> Compartment & Partition Wall
>> Cattle Sheep Shed & Dog Kennel
Why choose WDF?
1:We produce honeycomb panel with more than 10 years experience.
We have professional team to offer clients total solution from design to finish, provide customer individual care.
2.Overall control over the whole production process from aluminum coils to finished panels.
We have production base of aluminum coils, honeycomb cores, aluminum sheet and composite panels.
3.Our team is dynamic, young, motivated, customer-oriented and diverse and you can reach us at 24/7.
4.Our products are tested , so you can rest assured that our quality is guaranteed.
Send your inquiry directly to us
