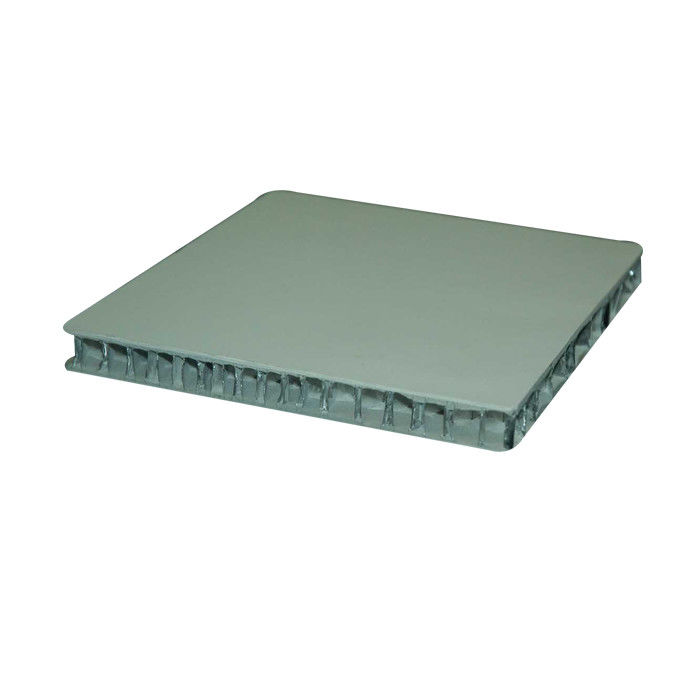

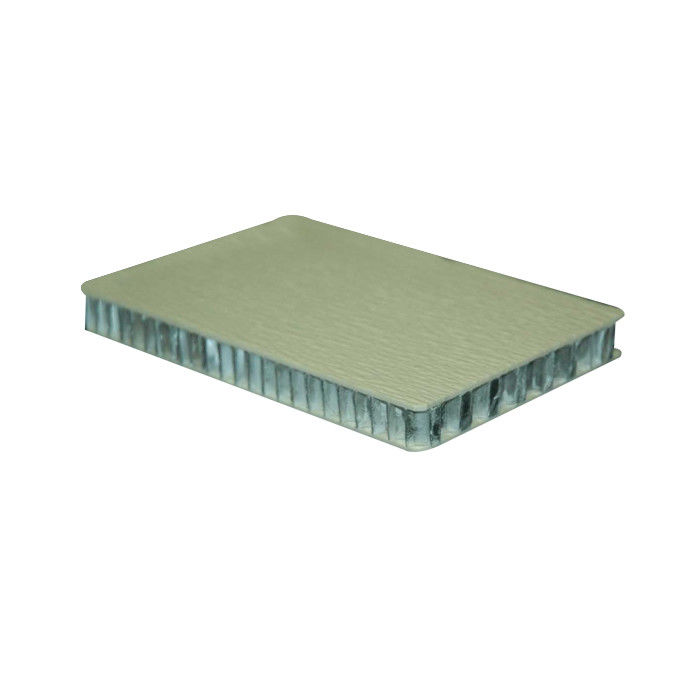

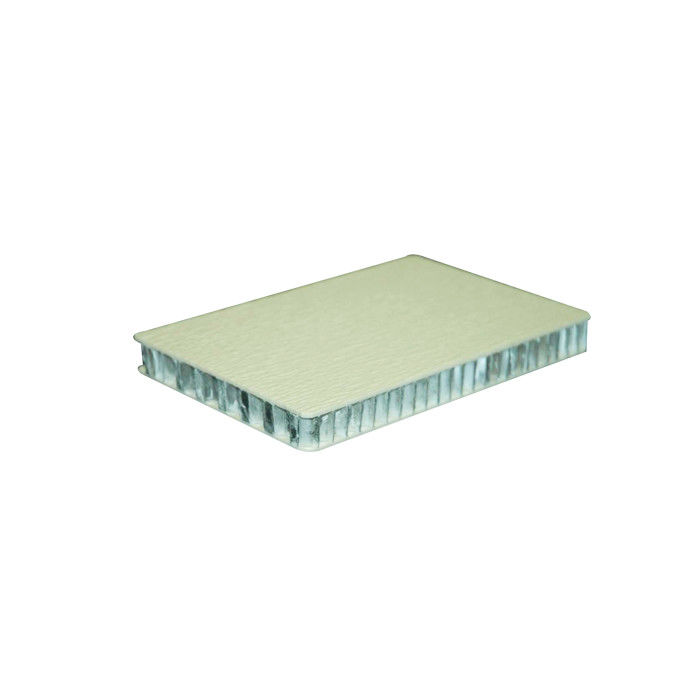

High Impact Aluminum Honeycomb FRP Sandwich Panels For Truck Body
Definition
Fiber Glass Alu Honeycomb Panel is a lightweight composite panel with an aluminum honeycomb core faced with fiber glass impregnated with epoxy resin.
This panel offers unique characteristics since it combines lightweight with high mechanical properties. The application of this panel for example permits huge savings as far as weight and thickness of natural stones slabs, such as marbles and granite and mosaics are concerned. In this way, also the costs of these materials can be reduced.
Composition
| Skins |
handmade glassfiber fabric, made of epoxy resin or polyester resin, thickness from 0.3mm to 3.0mm
|
| Cores | aluminum honeycomb cores, alloy 3003 series, cell size 1/4'', 3/8'', etc. foil thickness from 0.04mm to 0.08mm |
|
Total panel thickness |
from 3mm to 100mm |
| Weight |
20mm thick panel 4.5kg per square meter(with 1.0mm fiberglass skins and 1/4inch cell size.)
|
| Standard panel size |
1220x2440mm, 1500x3000mm, 1250x3000mm, any other customized sizes.
|
Features
Application
Back panel for stone aluminum honeycomb panels.
Wall Panel
Sign and Bill Boards
Frequently Asked Questions: Sandwich Panels
1.What Is A Sandwich Panel?
A sandwich panel is a composite panel that uses stiff and strong skins (face sheets) bonded to a lightweight core. Common skin materials are Aluminum and fiberglass. Common core materials are plywood ,EPS foam,XPS Foam,PU foam , aluminum and PP honeycomb. Sandwich panels are incredibly lightweight and strong.
2.What Are Sandwich Panels Used For?
Sandwich panels are used when a super lightweight assembly is required. The interior structure (walls, floors, etc.) of airplanes are usually constructed of sandwich panels instead of solid materials. Satellites, trains and racecars also use sandwich panels to reduce weight as much as possible while holding strong.
3.Can You Mount Things To A Sandwich Panel?
Since the skins on a sandwich panel are so thin extra precautions must be taken when mounting things to them. Bonding a fastener to the surface works in many cases. For through bolts it’s necessary to use an insert or fill a section of core with adhesive to keep the panel from crushing as the bolt is tightened.
Why choose WDF?
1:We produce honeycomb panel with more than 10 years experience.
We have professional team to offer clients total solution from design to finish, provide customer individual care.
2.Overall control over the whole production process.
Excellent executive ability and good team work spirit.
3.Our team is dynamic, young, motivated, customer-oriented and diverse and you can reach us at 24/7.
4.Our products are tested , so you can rest assured that our quality is guaranteed
