1.22m FRP Foam Core Panels PU Core Fibreglass Reinforced Polyester Resin Wall Panel

1.22m FRP Foam Core Panels PU Core Fibreglass Reinforced Polyester Resin Wall Panel

PU Core FRP Foam Core Panels

1.22m FRP Foam Core Panels

PU Fibreglass Reinforced Polyester Resin Wall Panel

Place of Origin:

Foshan,China

Brand Name:

WDF

Certification:

ISO

Model Number:

WDF-FPP

Contact Us

Request A Quote
Product Details
Insulation Core:
Polyurtane Foam
Skin:
Fiberglass Reinforced Plastic
Thickness:
20 To 100mm
Bonding:
Pressure Or Vaccum
Length:
Upto 12000mm
Gelcoat:
With Gelcoat
Fire Resistant:
Optional
Color:
RAL Color Or Per Customer Request
Payment & Shipping Terms
Minimum Order Quantity
100sqm
Price
23-45usd/sqm
Packaging Details
protective film+Plywood Pallet
Delivery Time
10-25 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
50000 SQM per Month
Product Description

PU Foam Core Coated On Both Sides With Glassfibre Reinforced Polyester Resin



Definition

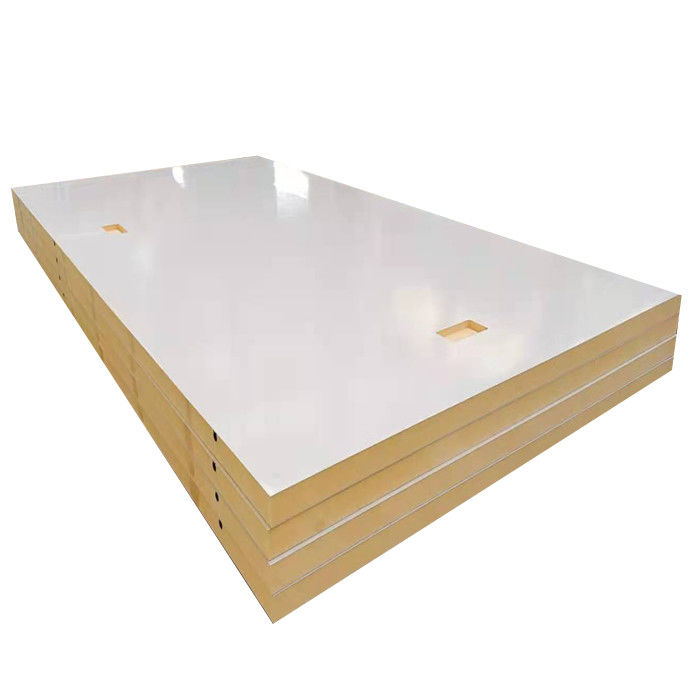

PU foam cored FRP composite panels are made of prefabricated fiberglass reinforced plastic sheets as inner and outer surfaces, PU foam as core and high-strength adhesive bonding together under high vacuum pressure. The gelcoat on surfaces are FDA approved, friendly to food.



Panel Composition

Skin - SKIN OF POLYESTER GRP with white gelcoat and protective film on gelcoat side
         Thickness: from 1,1 mm to 3 mm  suitable for contact with food products

Bonding - STRUCTURAL ADHESIVE

Core - Polyurethane FOAM



Thickness: 20mm-100mm,according to your application
Width: up to 3000mm,standard size 1.22m
Length: 2440mm standard, can be customer specific
Colors: RAL-, scale or customer-specific shades
uv/weathering Excellent protection
Finish choice Versatile, meeting different require. Gel coat available



Typical Features:

1. Light-weight &high-intensity

2.fire resistant & insulation

3. Anti-impact & scratch

4. Corrosion resistant

5. easy to clean & install

6. Anti-mildew, mould, moisture, resistant

7. Resilient to weathering and hail

8. Excellent thermal characteristics



Application:

Insulated bodyworks, isothermal and refrigerated containers, catering vehicles..



Available Polyester skins

  • Standard gel coated polyester available from 1.2 mm to 3 mm
  • High gloss polyester available from 1.2 mm to 3 mm
  • High impact polyester available from 0.8 mm to 1.4 mm
  • Woven roving polyester available from 1.4 mm to 3 mm
  • Non gel coated polyester available from 1 mm to 3 mm

Available Polyester Skin colors

  • Standard available RAL 9003, 9010, 9016
  • All other RAL codes upon request

Options that can be added in the panels

  • Steel inlays (Plate, box profiles)
  • Aluminum inlays (Plate, box profiles)
  • Electric pipes
  • Montage frame around the outside (Wood, Hard foam, Plywood)
  • Plywood 6, 9, 12, 15, 18 and 22 mm
  • Wooden/Steel/Aluminum or composite cross member
  • Lashing rails reinforcements
  • Double stock rails reinforcements
  • Side door reinforcements
  • Kick plate reinforcements
