Length 500mm-4000mm Thin Stone Veneer Panels Aluminum Backing Honeycomb Core

Length 500mm-4000mm Thin Stone Veneer Panels Aluminum Backing Honeycomb Core

500mm Thin Stone Veneer Panels

Honeycomb Core Thin Stone Veneer Panels

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
From 6mm To 30mm
Maximum 1500*3000mm
Stone Venner+Aluminum Honeycomb Panel
Foil Thickness:
0.04mm, 0.05mm, 0.06mm, 0.07mm
Outdoor, Cladding Wall
Stone Choices:
Marble,Granite,Limestone,and Faux Stone
Anti-Static, Fireproof, Mould-Proof, Fireproof,lessweight
Edge Processing:
Edge Closed Or Edge Open
Bio-Component Modified Epoxy Resin
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
protective film+wooden case
Delivery Time
15-25working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
50000 SQM per Month
Product Description

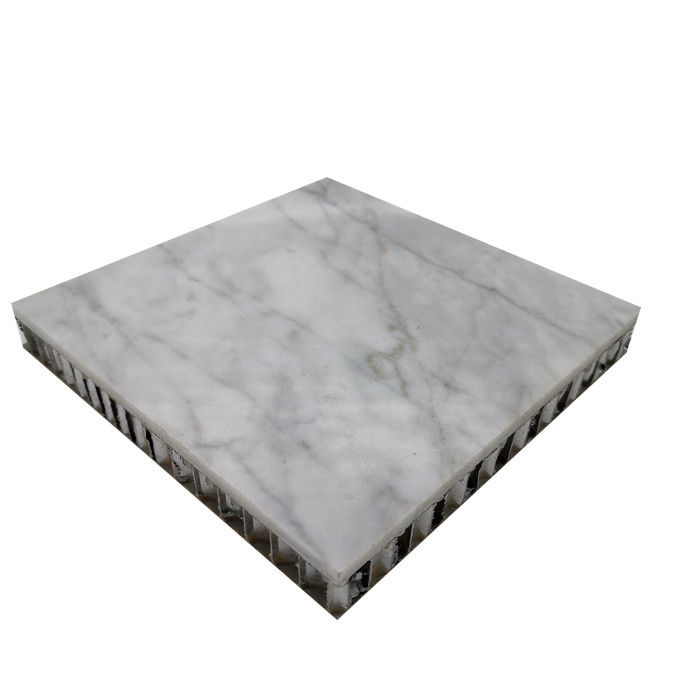

Lightweight Marble Stone Veneer Honeycomb Panel for Stone Substitute


Lightweight stone honeycomb panel is comprised of natural stone veneer securely bonded to high-strength, aviation-grade, aluminum honeycomb panels.It weighs approximately 14kg per square meter, approximately 80 percent less than standard 3/4″ slab material.



Top:Stone or Porcelain or Stainless Steel

+ Aluminum or Fiberglass Skin

+ Honeycomb Core

+ Aluminum Backing

stone honeycomb panel



Kinds of Stone Granite, marble, onyx, limestone, sandstone, quartz
Stone thickness 3mm – 8mm
Aluminum facesheet Aluminum alloy 5052H24/3003H24
Thickness: 0.05-1.2mm
Aluminum base sheet Aluminum alloy 5052H24/3003H24
Thickness: 0.5-1.2mm
Honeycomb core Aluminum alloy 3003 H24
foil thickness: 0.04-0.07mm, side length: 4-7 mm
thickness can be up to 200mm
Adhesive Polymer adhesive film
Bio-component modified epoxy resin
Bio-component modified polyurethane
Coating Fluorocarbon roller coating
Powder spraying coating
Length 500mm to 4000mm.
Width 500mm to 1500mm.



  • have 60 times the impact strength of solid stone panels
  • weigh 80% less than solid stone panels
  • have been tested at wind speeds of over 300 miles per hour
  • pass the large missile impact test requirements for hurricane-resistant structures
  • are impervious to moisture penetration, which can cause mold and mildew; a real problem with typical masonry construction
  • are earthquake resistant, thanks to their ability to flex without breaking
  • offer blast resistance when used as the exterior building envelope

Length 500mm-4000mm Thin Stone Veneer Panels Aluminum Backing Honeycomb Core 0


Countertops and vanity tops

Lobby wall and background wall

Bathrooms and showers

Elevator walls and flooring


Production Procedure

Slab Cutting - Gluing - Aluminum Honeycomb Panel and Stone Sheet Compositing - Vacuum Pressing - Splitting - Thickness Setting - Polishing - Finished.


Natural Stone Types
Stone types include granites, limestone, marbles, and travertine.
Granite: The hardest and most durable of stones. Granite is formed far beneath the earth's surface as molten rock slowly cools and crystalizes.
Limestone: A calcium-based stone that is widely used in architecture. Formed in ancient seas from the calcium precipitate and from the shells and structures of tiny sea creatures that have been compressed and cemented over centuries.
Marble: Used in fine architecture since ancient times, marble was originally formed from limestone that had been compacted and transformed by heat and pressure.
Travertine: The stone of the Roman Colosseum. Recognizable for its pitted surface, travertine is a calcium-rich stone formed in natural springs.


Why do we apply honeycomb to marble and natural stone?

In the case of interior design or general marble and stone cladding, honeycomb provides the strongest support with the lowest possible weight. Three factors previously irreconcilable in marble and stone cladding are related in the most optimized way possible:

Low weight + High Resistance = Large Format

Honeycomb applied to marble, and natural stone thus guarantees great functionality. It gives wings to the creativity of interior designers, furniture designers, facadists, naval interior designers, and architects.


Why choose WDF?

1:We produce honeycomb panel with more than 10 years experience.

We have professional team to offer clients total solution from design to finish, provide customer individual care.

2.Overall control over the whole production process from aluminum coils to finished panels. We have production base of aluminum coils, honeycomb cores, aluminum sheet and composite panels.

3.Our team is dynamic, young, motivated, customer-oriented and diverse and you can reach us at 24/7.

4.Our products are tested , so you can rest assured that our quality is guaranteed.



Length 500mm-4000mm Thin Stone Veneer Panels Aluminum Backing Honeycomb Core 1Length 500mm-4000mm Thin Stone Veneer Panels Aluminum Backing Honeycomb Core 2
