Lightweight Honeycomb Ceiling Panels Sound Insulation Perforated Aluminum

Lightweight Honeycomb Ceiling Panels Sound Insulation Perforated Aluminum

Lightweight Honeycomb Ceiling Panels

Sound Insulation Honeycomb Ceiling Panels

Perforated Aluminum Ceiling Panels

Place of Origin:

Foshan,Guangdong

Brand Name:

WDF

Certification:

ISO

Model Number:

WDF-HCP

Contact Us

Request A Quote
Product Details
Surface Finish:
PVDF Coating, PE Coating, Powder Coating, Anodized
Thickness:
8mm,10mm,12mm,15mm Etc
Length:
Within 4000mm
Width:
Within 1500mm
Color:
Ral Colors, Wood Colors, Stone Colors
Application:
Office, Hotel, Household, Dust Free Room, Public
Payment & Shipping Terms
Minimum Order Quantity
100sqm
Price
20-60 USD
Packaging Details
protective film-Seaworthy Plywood Pallets
Delivery Time
7-20 working days depending on qty
Payment Terms
L/C, T/T, Western Union
Supply Ability
50000 SQM per Month
Product Description

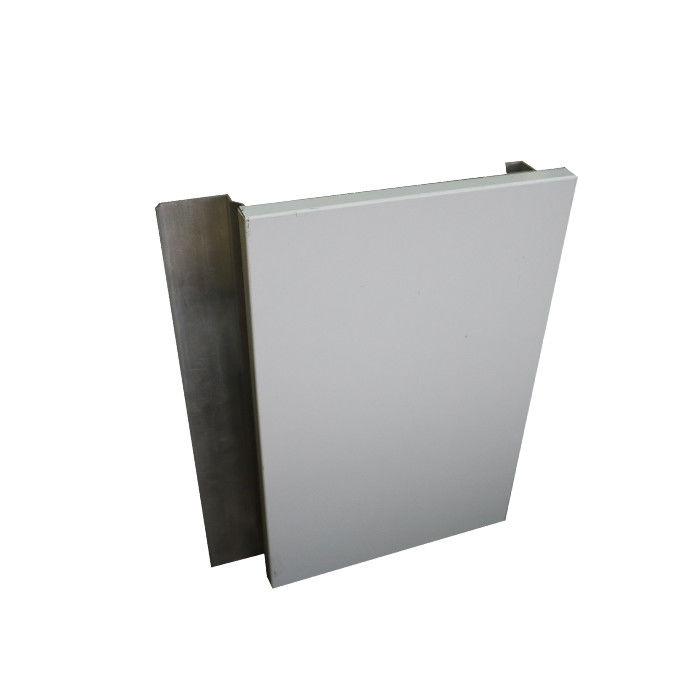

Lightweight Sound Insulation Perforated Aluminum Honeycomb Ceiling Panel



Perforated aluminum honeycomb panels is composed of two aluminum sheet with aluminum honeycomb core inside. The top aluminum sheet is perforated with woven fabric under the top skin for soundproof purpose.
The perforation dimension can be customized at your request.



Production Specification:

Perforation:Diameter 2.5mm,3.0mm etc

Skin alloy type 1100, 3003, 5052, 6061
Skin thickness 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm
Surface treatment PVDF, PE, Power coating, Anodizing,
Core materials alu honeycomb, paper honeycomb
Total thickness 8mm, 10mm, 15mm, 18mm, 20mm, 25mm,30mm
Standard dimension 1220*2440mm
Other dimension and thickness could be customized.



Features:

Many option for colors and surface treatment.
Large dimensional panels (Max 8000mm x 2000mm).
High flatness.
Light weight with high strength.
Fireproof and waterproof.
Sound and thermal insulation.
Easy for installation.

Manufacturing Procedure

Roller coating or anodized surface, unrolling and cutting aluminium sheets, punching corners, bending aluminum sheets, supplying adhesive (glue) to front and back panels, unfolding aluminum honeycomb core, cutting out and putting honeycomb core into back panel, putting front panel, fixing front and back panels, putting sandwich panels into laminating machine, laminating, checking and finishing. To make panels ready for installation (for architecture cladding and decoration), asembling accessories to the panels and then packing for shipping.

Packing and Container Loading

There is protective film on panel surface to prevent the skin from dirty and scratch, the panels will be piled flatly and pack in export grade plywood cases.
