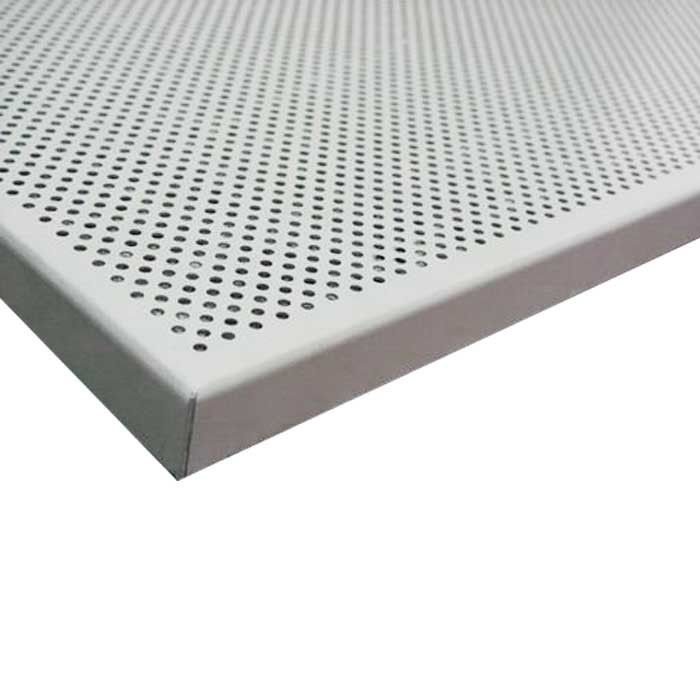

PVDF Coating 8mm Honeycomb Ceiling Panels Perforated Metal Acoustic Ceiling Panels

Certification
China Foshan Wonderful Composite Material Co., Ltd. certification
China Foshan Wonderful Composite Material Co., Ltd. certification
Customer Reviews
I like the products of this company very much. They can help me build my company brand better.

—— Josh

Panels are in good condition and well packed, the sales person in WDF cooperated well too, will continue our cooperations in future.

—— Tom

I'm Online Chat Now

PVDF Coating 8mm Honeycomb Ceiling Panels Perforated Metal Acoustic Ceiling Panels

PVDF Coating 8mm Honeycomb Ceiling Panels Perforated Metal Acoustic Ceiling Panels
PVDF Coating 8mm Honeycomb Ceiling Panels Perforated Metal Acoustic Ceiling Panels

Large Image :  PVDF Coating 8mm Honeycomb Ceiling Panels Perforated Metal Acoustic Ceiling Panels

Product Details:
Place of Origin: Foshan,Guangdong
Brand Name: WDF
Certification: ISO
Model Number: WDF-HCP
Payment & Shipping Terms:
Minimum Order Quantity: 100sqm
Price: 20-60 USD
Packaging Details: protective film-Seaworthy Plywood Pallets
Delivery Time: 7-20 working days depending on qty
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 SQM per Month

PVDF Coating 8mm Honeycomb Ceiling Panels Perforated Metal Acoustic Ceiling Panels

Description
Surface Finish: PVDF Coating, PE Coating, Powder Coating, Anodized Thickness: 8mm,10mm,12mm,15mm Etc
Perforation: Diameter 2.5mm,3.0mm Or Customer Specific Width: Within 1500mm
Color: Ral Colors, Wood Colors, Stone Colors Application: Office, Hotel, Household, Dust Free Room, Public
High Light:

PVDF Coating Honeycomb Ceiling Panels

,

8mm Honeycomb Ceiling Panels

,

Honeycomb Perforated Metal Acoustic Ceiling Panels

Perforated Aluminum Honeycomb Acoustic Panel for Wall & Ceiling Insulation and Decoration

Perforated aluminum honeycomb panels is composed of two aluminum sheet with aluminum honeycomb core inside. The top aluminum sheet is perforated with woven fabric under the top skin for soundproof purpose.
The perforation dimension can be customized at your request.



Production Specification:

Perforation:Diameter 2.5mm,3.0mm etc

Skin alloy type 1100, 3003, 5052, 6061
Skin thickness 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm
Surface treatment PVDF, PE, Power coating, Anodizing,
Core materials alu honeycomb, paper honeycomb
Total thickness 8mm, 10mm, 15mm, 18mm, 20mm, 25mm,30mm
Standard dimension 1220*2440mm
Other dimension and thickness could be customized.



Features:

Many option for colors and surface treatment.
Large dimensional panels (Max 8000mm x 2000mm).
High flatness.
Light weight with high strength.
Fireproof and waterproof.
Sound and thermal insulation.
Easy for installation.

Manufacturing Procedure

Roller coating or anodized surface, unrolling and cutting aluminium sheets, punching corners, bending aluminum sheets, supplying adhesive (glue) to front and back panels, unfolding aluminum honeycomb core, cutting out and putting honeycomb core into back panel, putting front panel, fixing front and back panels, putting sandwich panels into laminating machine, laminating, checking and finishing. To make panels ready for installation (for architecture cladding and decoration), asembling accessories to the panels and then packing for shipping.

Packing and Container Loading

There is protective film on panel surface to prevent the skin from dirty and scratch, the panels will be piled flatly and pack in export grade plywood cases.
PVDF Coating 8mm Honeycomb Ceiling Panels Perforated Metal Acoustic Ceiling Panels 0

FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer.



Q: How long is your delivery time?
A: Generally it is 10-15 days if the raw materials are in stock. or it is 30-45 days if the raw materials are not in stock, based on quantity.



Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge yet customers are expected to afford the shipping cost.



Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shipment. .
