Place of Origin:
Foshan，Guangdong
Brand Name:
WDF
Certification:
ISO
Model Number:
WDF-HCP
Contact Us

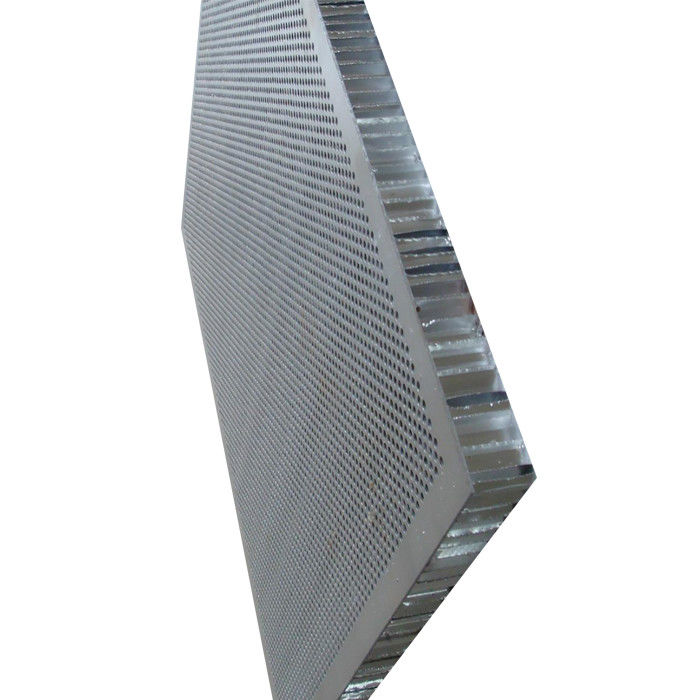

Light Weight Perforated Aluminum Corrugated Honeycomb Panels For Ceilings
Aluminum corrugated core composite aluminum plate is also called aluminum corrugated composite board. It adopts AL3003 aluminum alloy material, the panel is 0.8-1.0mm, the floor thickness is 0.4-0.5mm, the core board thickness is 0.2mm, and it is fully automated production. The equipment is produced with ERPSystem system quality management.
The aluminum corrugated core composite aluminum plate is cold-formed water corrugated type in the same assembly line, and the bonding surface of the thermosetting two-component structural resin adhesive and the panel back plate is curved, which increases the bonding strength and has metal. The excellent adhesion of the board ensures stable and durable bonding performance and the same life of the building.
Production Specification:
Perforation:Diameter 2.5mm,3.0mm etc
| Regular size(W*L*H) | 1220mm*2440mm*6mm |
| Max. size(W*L*H) | 2000mm*10000mm*100mm |
| Available thickness: | 4mm-100mm |
| Corrugated core thickness: | 0.2-0.5mm |
| Regular surface finish: | PVDF painted, PE painted, powder coating, wood grain, stone grain, etc. |
Size, shape, color and surface finish can be customized as requested.
Surface treatment
Powder coating: it is most widely used and environmental friendly way
Roll coating: it can make flower and wooden beautiful pattern come to life with 15 years lifespan.
PVDF: It is the best surface treatment with anti-weather, anti-hit function. Experiment shows that pvdf will not fade in 20 years under harsh rain and sun shining.
Features:
Why choose WDF?
1:We produce honeycomb panel with more than 10 years experience.
We have professional team to offer clients total solution from design to finish, provide customer individual care.
2.Overall control over the whole production process from aluminum coils to finished panels. We have production base of aluminum coils, honeycomb cores, aluminum sheet and composite panels.
3.Our team is dynamic, young, motivated, customer-oriented and diverse and you can reach us at 24/7.
4.Our products are tested , so you can rest assured that our quality is guaranteed.
Send your inquiry directly to us
