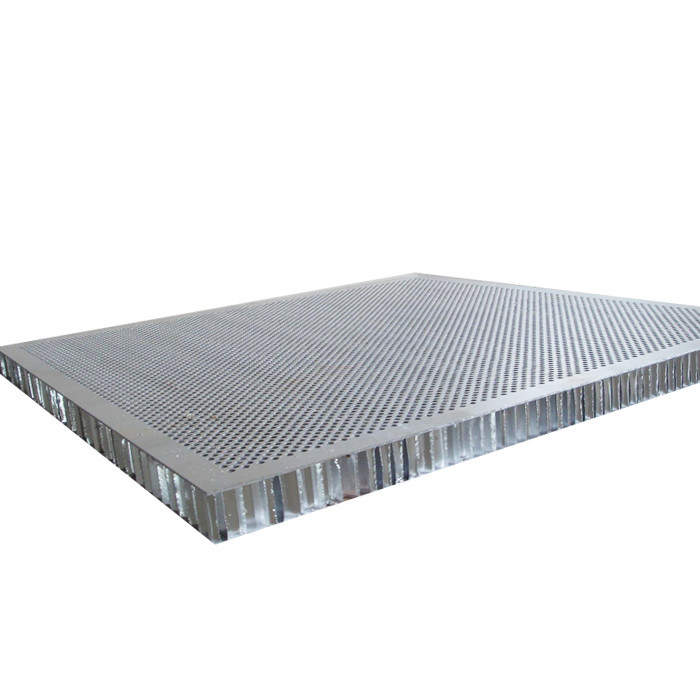

Acoustic False Ceiling and Perforated Cladding Wall Composite Honeycomb Panel
Definition
Perforated aluminum honeycomb panel is made from perforated aluminum sheets with built-in sound-absorbing fabrics (optional) and honeycomb structure aluminum foil by sandwich lamination, very popular for interior and exterior decoration, especially for the insulated wall or ceiling systems.
Brief Introduction
| Overall Honeycomb Panel Thickness | 6mm,8mm,10mm,12mm,15mm,18mm,20mm, etc. |
| Top aluminium skin | 0.5mm, 0.7mm, 0.8mm, 1.0mm. etc |
| Core Material | Aluminum honeycomb core |
| Perforation | diameter2.5mm, 3.0mm, etc. |
| Surface finish | roller coated, powder coated, spray painting, etc. |
| Max. Size |
2000x10000mm |
Features
Good acoustic property
Easy installation
Allow each panel to be moved and replaced independently
Application
ceiling use And Wall usage
1220x2440mm panel size with 12mm panel thickness.
Top and bottom skin 0.8mm, top skin PE coated in white color with perforation.
Packing
There is protective fikm on each panel and then into seaworthy plywood pallet.
