15mm 20mm 25mm PVDF Aluminum Honeycomb Panels For Curtain Wall

15mm 20mm 25mm PVDF Aluminum Honeycomb Panels For Curtain Wall

PVDF Aluminum Honeycomb Panels

10mm Aluminum Honeycomb Panels

Curtain Wall Alu Honeycomb Panels

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Surface Finish:
From 4 To 60mm
Upto 6000mm
Surface Treatment:
Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing,
Fire Resistance:
A2 Grade
More Than 10 Years
Aluminum Honeycomb Core
Payment & Shipping Terms
Minimum Order Quantity
USD 12.5-40 per sqm
Packaging Details
1. Packing in bulk for FCL 2. Packing in with fumigated wooden pallets for FCL 3. Packing in with fumigated wooden pallets for LCL
Delivery Time
5-15 working days
Payment Terms
L/C, T/T, Western Union, D/P
Supply Ability
50000 SQM per Month
Product Description

10mm 15mm 20mm 25mm Light Weight PVDF Aluminum Honeycomb panel for curtain wall


Aluminum honeycomb panel is compoisted byaluminum sheet+ aluminum honeycomb core + aluminum honeycomb sheet

Aluminum honeycomb core is composed by muli-layer aluminum foil material and is available in varies cell sizes with unique cell

configurations that significantly strengthen the panel without deformation of the cell walls or loss of mechanical properties with the relevant thickness.The honeycomb core surface is treated for corrosion resistance for durability purposes

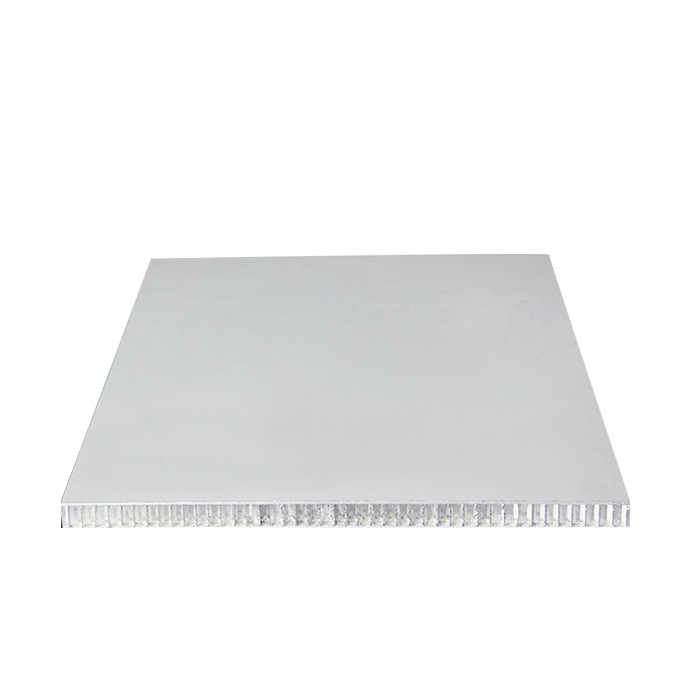

15mm 20mm 25mm PVDF Aluminum Honeycomb Panels For Curtain Wall 0


Length Upto 10m
Width Upto 2200mm
Thickness From 4 to 100mm

Typical 5.0mm 10mm 15mm 20mm 25mm


Other Special size please contact us for discussion


- Light

- Good rigidity

- Flat and straight

- Good at wind-proof and pressing-proof

- Fire-proof

- Easy to process and shape

-Good at weather-proof

- Good intensity

- Good at sound and heat insulation

- Good at shock-resistance

- Green building material

- Energy-saving and environmental protection



Physical Property
Item Unit T=10mm
Weight kg/m3 kg/m3
Thermal expansivety 23x10-6
Heat conduction ratio /ºC 1.7
Cimbustion W/MºC Flame Resist / Class B1
Presssing-proof   1.72
Pulling-proof strong modulo of the surface Mpa 20-50
Bending protracting ratio Gpa 5%



Exterior wall, interior wall, cleanroom, ceiling, office cubicles, washroom cubicles, travel trailer marine vessels

interior decoration, interactive whiteboard, door and etc.

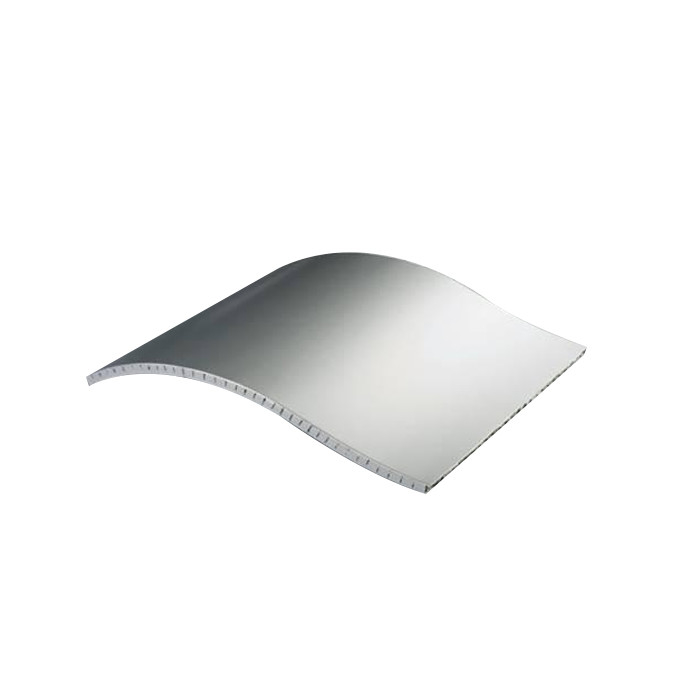

15mm 20mm 25mm PVDF Aluminum Honeycomb Panels For Curtain Wall 1

Shipping and Packing

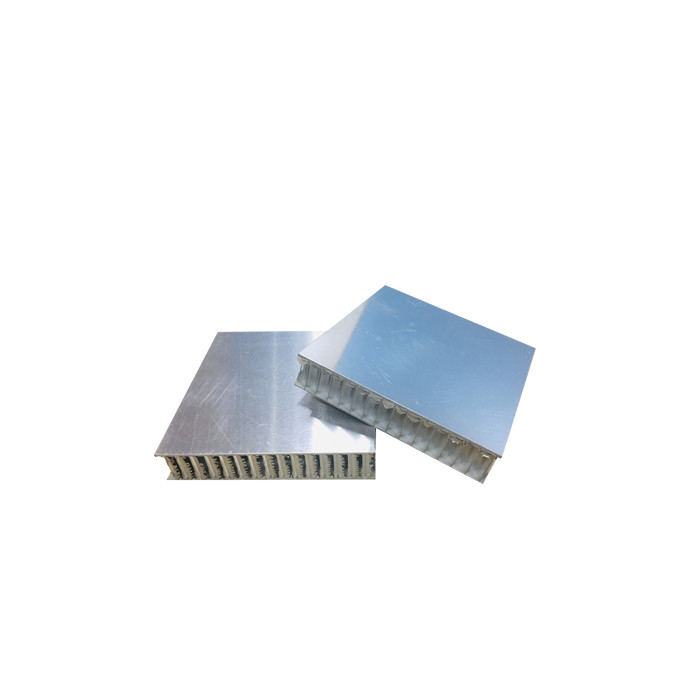

15mm 20mm 25mm PVDF Aluminum Honeycomb Panels For Curtain Wall 2

Our Factory

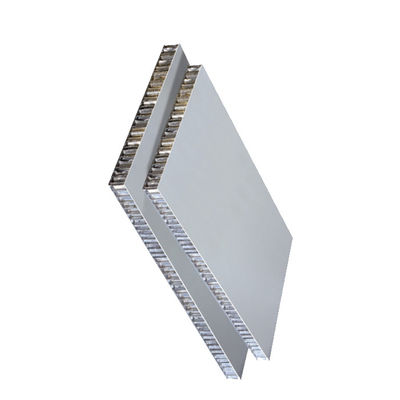

15mm 20mm 25mm PVDF Aluminum Honeycomb Panels For Curtain Wall 3


Q1. Are you a factory or a trade company?
A1: We are manufacturer of Aluminum wall panel, we have our own factory in Foshan City, Guangdong Province.

Q2. What is delivery time?
A2: 10-15 working days after deposit,Except for public holidays.

Q3. Is possible to make products for my brand?
A3: Yes, it's possible. Please give us your brand or LOGO design, then we can make the products with your brand or LOGO.

Q4. Do you provide free samples?
A4: Yes, samples are free of charge. The delivery of sample usually takes 3-5 days.

Q5: What if you send me wrong size products?
A5: Shop drawing will be sent to you for final confirmation before production, if we send you wrong size products, we will replace
new products free of charge.

Q6: How can you guarantee the quality?
A6: We have rigorous quality test system, from raw materials to finished products, the materials must be checked and signed by QC
