Product Details:
|
| Product Name: | Fiberglass Honeycomb Panel | Face Material: | Fiberglass Reinforced Plastic Sheets |
|---|---|---|---|
| Core: | PP Honeycomb Core | Surface: | Gelcoat Smooth Or Rough |
| Skin Thickness: | From 1 To 3mm | Total Thickness: | 4 To 60mm |
| Usage: | Backpanel,Wall Panel For Truck Body Or Caravan Body | Maximum Size: | 2000*6000mm |
Definition

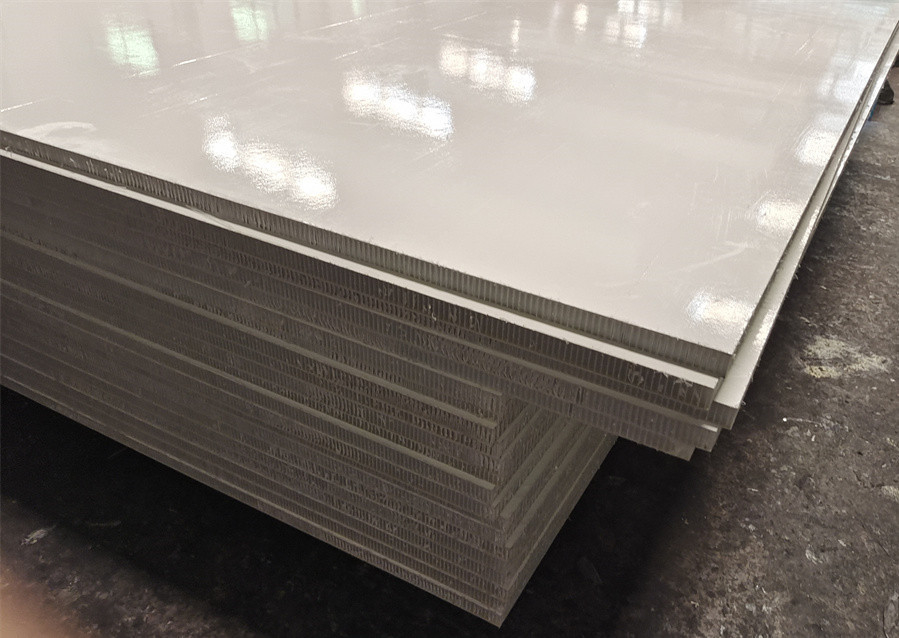

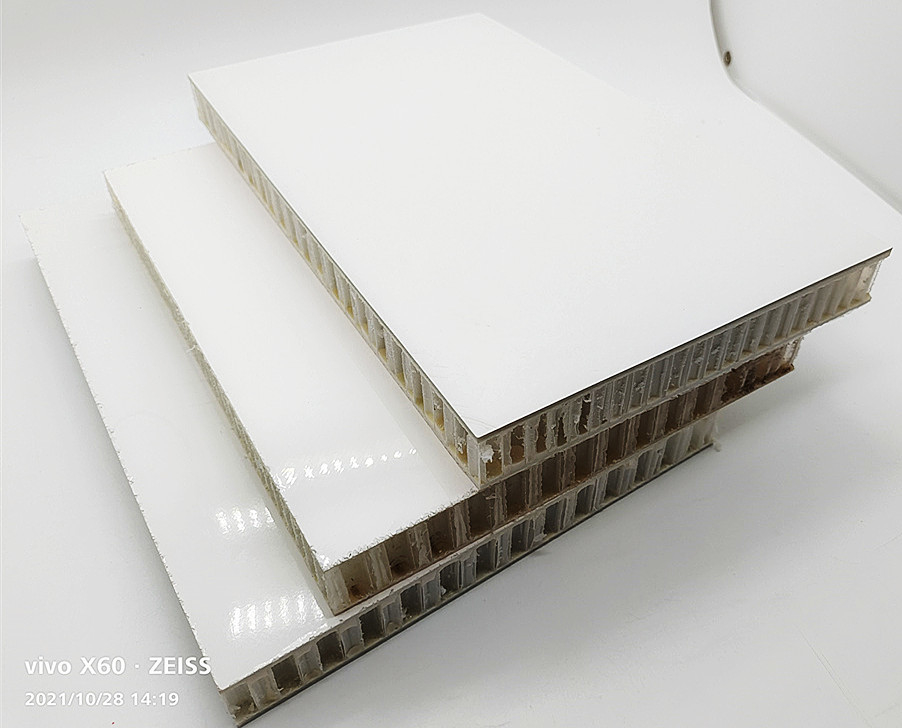

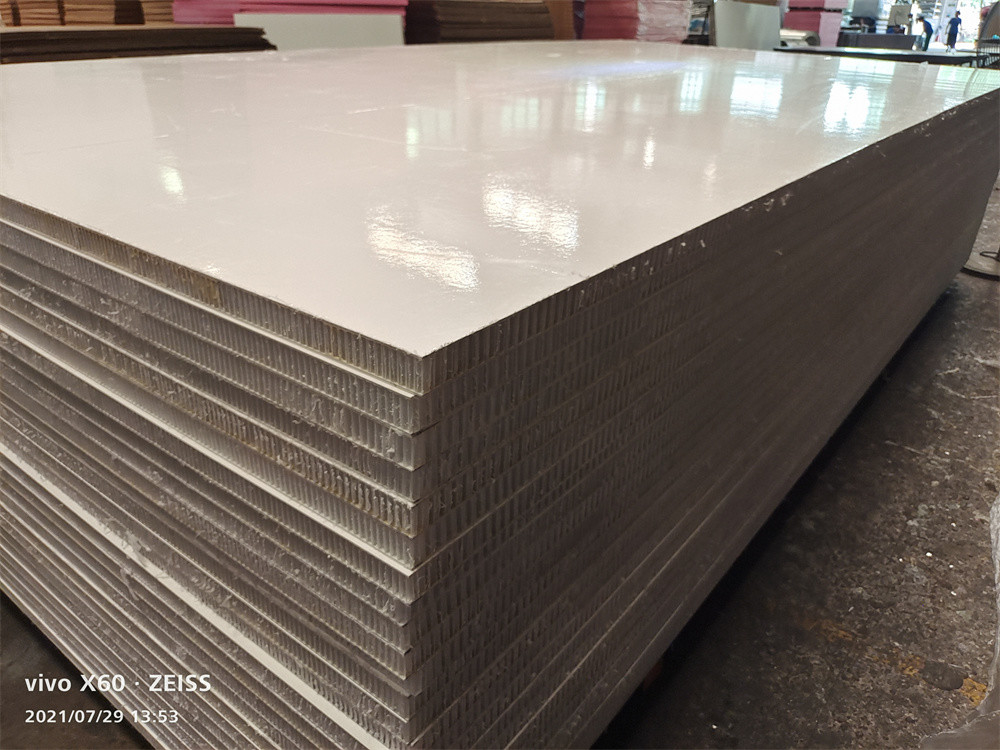

Fiberglass PP honeycomb core sandwich panel is composed of honeycomb core and fiberglass skin on each side.
It is ideal for Truck Body Wall with its light but strong structures and affordable cost.
Composition
| Skins |
handmade glassfiber fabric, made of epoxy resin or polyester resin, thickness from 0.3mm to 3.0mm
|
| Cores |
polypropylene Honeycomb core |
|
Total panel thickness |
from 3mm to 300mm |
| Weight |
20mm thick panel 4.5kg per square meter(with 1.0mm fiberglass skins and 1/4inch cell size.)
|
| Standard panel size |
1220x2440mm, 1500x3000mm, 1250x3000mm, any other customized sizes.
|
Advantages
• Reduced weight
• Mechanical strength and flexibility
• Acoustic and thermal insulation
• Water, moisture, corrosion and chemical resistance
Application
Back panel for stone aluminum honeycomb panels.
Wall Panel
Sign and Bill Boards
About Our Company
We design and manufacture FRP and aluminum composite RV boxes according to your requirements and specifications for
manufacturers, upfitters and outfitters of expedition vehicles, off-road and all-wheel drive vehicles, as well as motorhomes.
