Product Details:
|
| Standard Size: | 1220*2440mm | Application: | Building Facade |
|---|---|---|---|
| Panel Thickness: | 5-100mm | Surface Treatment: | PVDF,PE,Powder Coating, Anodized, Etc. |
| Edge Treatment: | Open Or Closed | Regular Thickness: | 10/12/15/20/25 Mm |
| Texture: | Wood Like, Stone Like, Smooth, Rough | Length: | Max 10m |
| High Light: | AL 3003 Aluminum Honeycomb Composite Panel,Partitions Aluminum Honeycomb Composite Panel,ISO Eco Friendly Aluminum Composite Panel |
||

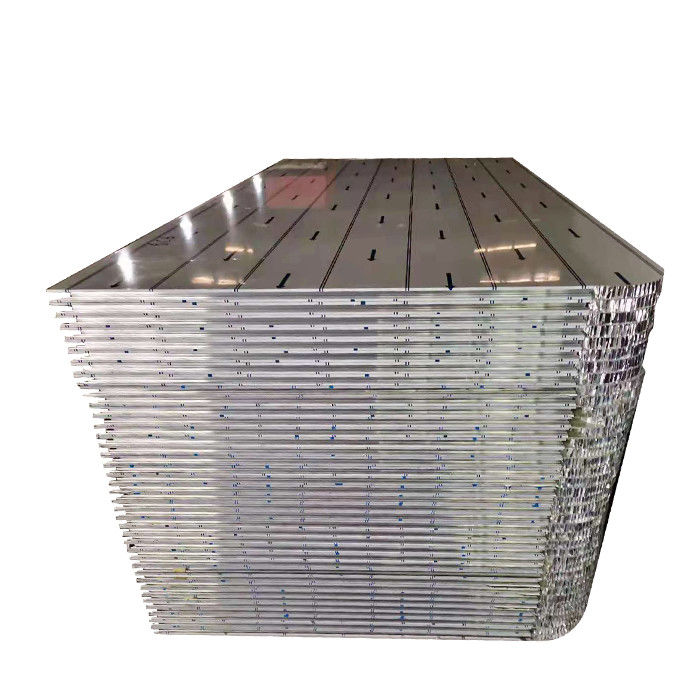

Lightweight Container Sandwich Aluminum Honeycomb Composite Panel

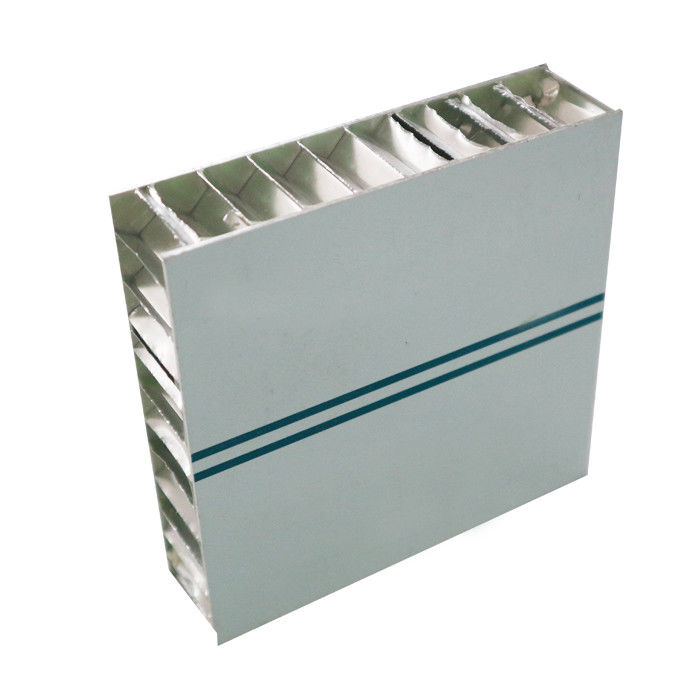

Basic info of Aluminum Honeycomb Panel
As a new type of aluminum composite panel, the aluminum honeycomb panel is made from coated or anodized aluminum sheets
and honeycomb structure aluminum foil core by sandwich lamination.It has much lower weight than traditional aluminium - plastic
composite panel considering the thickness of it is 6mm to 300mm while its weight is only 3.5kg to 15kg per sqaure meter. With high
stiffness and strength as well as good flatness, the aluminium honeycomb panel is very suitable and widely used for building
interior and exterior decoration and production of tables, cabinets, partitions and furniture.
Product Benefits
| Honeycomb core type | Alu3003 or 5002 | |||||
| Total thickness mm | 10 | 12 | 15 | 20 | 25 | |
| Skin thickness mm | Top | 1 | 1 | 1 | 1 | 1 |
| Bottom | 1 | 1 | 1 | 1 | 1 | |
| Core thickness mm | 8 | 10 | 13 | 18 | 23 | |
| Weight kg/m2 | 6.7 | 6.8 | 6.9 | 7.2 | 7.5 | |
| Temperature Resistance | Approximately -40℃ to 80 ℃ | |||||
| Flatness | 1.0mm per meter | |||||
| Skin alloy | AL 3003 | |||||
