Aluminum Door Honeycomb Core For Laser Jet Cutting And Shielding Screen

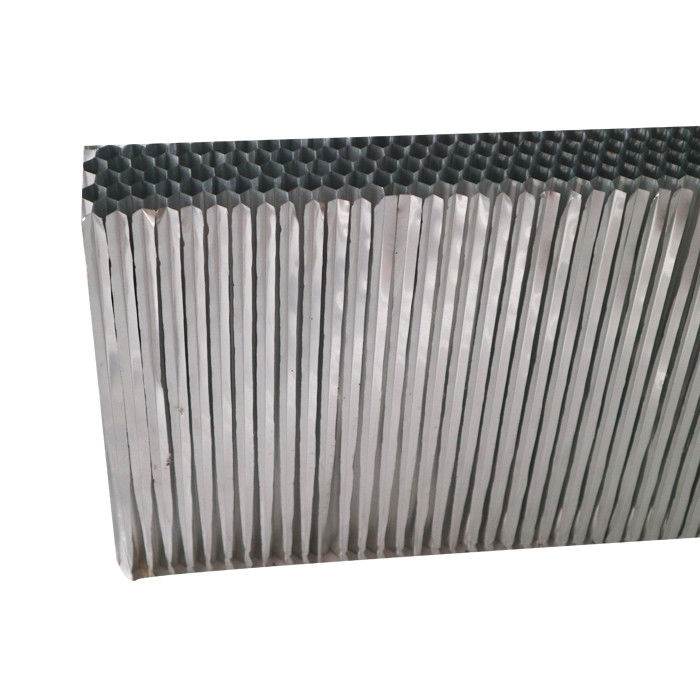

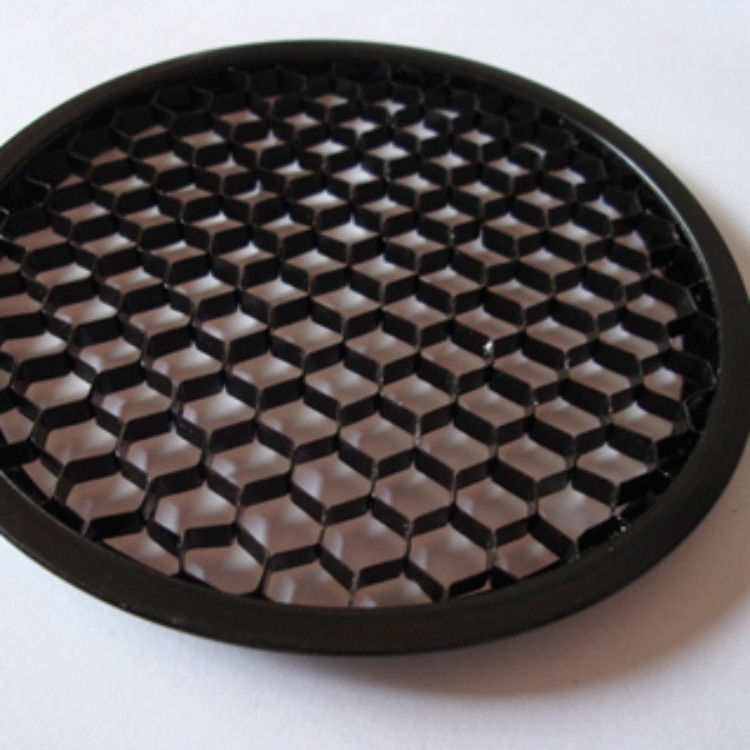

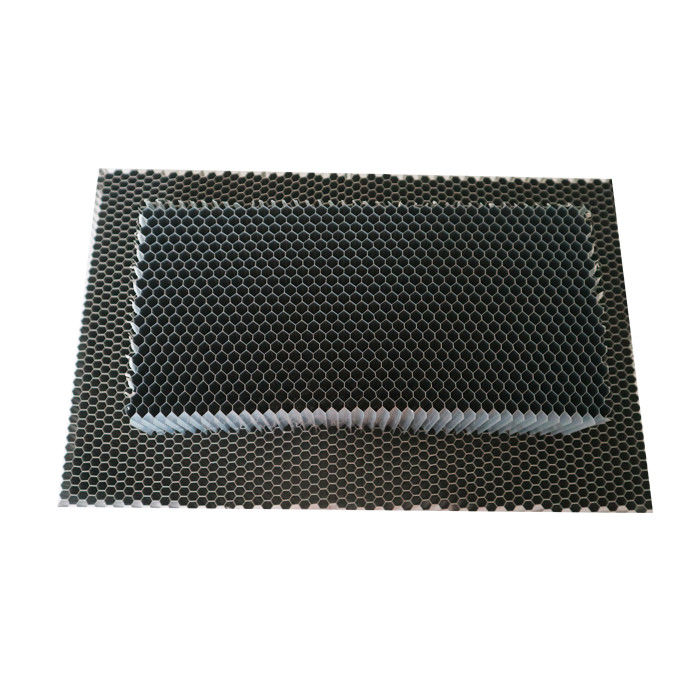

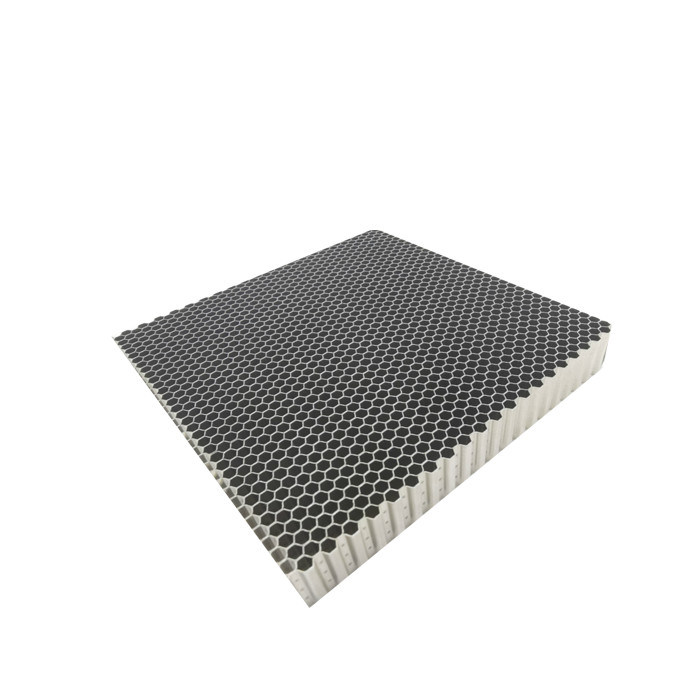

The aluminum honeycomb core is composed by multi-layer aluminum foil, honeycomb is formed after fully expanded. Our aluminum honeycomb core has sharp and clear hole surface, and it is suitable for adhering to high grade plate as well as other purposes. At present, two types of product we mainly produced are micro-aperture aluminum core and normal.
Aluminium honeycomb as panels’ core has several advantages:
| CELL SIZE (INCHES) / DENSITY (LBS) | STABILIZED COMPRESSION | STRENGTH "L DIRECTION" (MPa) | MODULUS "L DIRECTION" (PSI) | STRENGTH "W DIRECTION" (MPa) | MODULUS "W DIRECTION" (PSI) |
|---|---|---|---|---|---|
| 1/4 Inches | Density 3.4 | 2.00 MPa | 543 PSI | 1.60 | 258 | 0.90 | 128 |
| 1/4 Inches | Density 5.2 | 2.80 MPa | 998 PSI | 2.20 | 438 | 1.30 | 221 |
| 3/8 Inches | Density 2.3 | 1.11 MPa | 242 PSI | 0.86 | 189 | 0.59 | 88 |
| 3/8 Inches | Density 3.6 | 1.56 MPa | 632 PSI | 1.20 | 283 | 0.82 | 144 |
| 1/2 Inches | Density 1.7 | 0.65 MPa | 94 PSI | 0.7 | 102 | 0.4 | 58 |
| 1/2 Inches | Density 2.6 | 0.86 MPa | 274 PSI | 0.80 | 222 | 0.55 | 99 |
| 3/4 Inches | Density 1.2 | 0.35 MPa | 51 PSI | 0.4 | 58 | 0.3 | 44 |
| 3/4 Inches | Density 1.8 | 0.48 MPa | 163 PSI | 0.48 | 111 | 0.35 | 54 |
| 1 Inches | Density 1.3 | 0.35 MPa | 51 PSI | 0.4 | 58 | 0.3 | 44 |
*Information contained above is typical only and should be verified for any specific applications
| Aluminum Foil Material | A1100, A3003, A5052, A3104 |
| Avaliable Foil Thickness | 0.04-0.15 mm |
| Node | 1-20 mm |
| Diameter/Cell Size | 1.7-35 mm |
| Core Thickness/Cutting Height | 3.5-200mm |
| Shape | rectangle, triangle, rhombus, trapezoid |
| Regular Surface Treatment | Powder Coating, Anodized, Electrophoreses, etc. |
| Applications | network for traffic guidance light, crystal lattice for electric heater, laser-beam cutter panel for testile machine, separator for illmination, guidance for water and gas purification, cooling agent carrier for air conditioner, refrigerator and air purification, shielding screen, heat insulation screen, etc. |
| Customerization(MTM) | Yes (color, surface texture, size, shape, pattern, etc.) |
Supplied form:
Expanded or unexpanded.
Full blocks or cut slices.
Perforated or un perforated.
Corrosion treated or untreated.
Application
Architectural wall Cladding and decoration
Architectural Rainscreen Facades and canopies envelope.
Lightweight interior and exterior architectural panels.
Aerospace, Marine & Transport Flooring, ceilings, Walls & Partitions
Silk Screen Printing Tables, doors and cabinets
CNC Vacuum Bases
Lightweight Floors, Walls, partitions, canopies, Ceilings, roofs etc.
Special Purpose Panel Design
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the raw materials are in stock. or it is 30-45 days if the raw materials are not in stock, based on quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge yet customers are expected to afford the shipping cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. .
