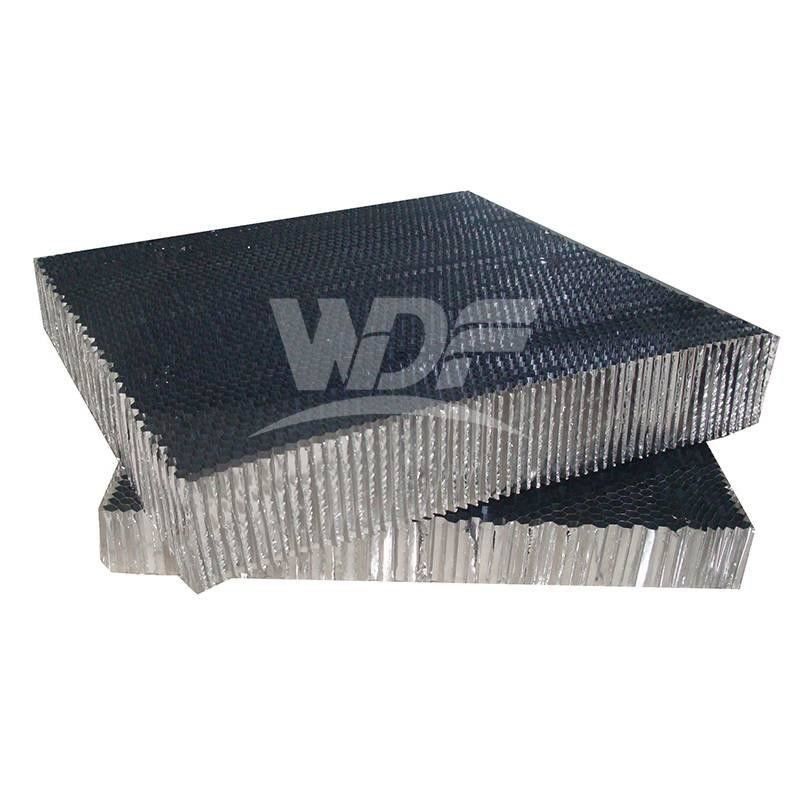

0.08mm Thickness Aluminum Honeycomb Core For Door And Cabinet Filing

0.08mm Thickness Aluminum Honeycomb Core For Door And Cabinet Filing

0.08mm Thickness Aluminum Honeycomb Core

Cabinet Filing Aluminum Honeycomb Core

Aluminum Honeycomb Grid Core

Place of Origin:

Guangdong China

Brand Name:

WDF

Certification:

ISO

Model Number:

WDF-AHC

Contact Us

Request A Quote
Product Details
Material:
Aluminum Alloy
Foil Thickness:
0.036mm-0.08mm
Cell Size::
3mm-34mm
Shape:
Rectangle, Triangle, Rhombus, Trapezoid
Aluminum Alloy Grade:
A3003,A5052
Node Size:
1mm To 20mm, Customized Made
Application:
Doors, Flooring, Ceilings, Partitions, Cleanroom Panel
Usage:
Honeycomb Panel/Honeycomb Door/Honeycomb Ceiling
Payment & Shipping Terms
Minimum Order Quantity
200sqm
Price
10-30usd
Packaging Details
standard Seaworhty pallet or upon customer request
Delivery Time
7-20 working days
Payment Terms
L/C, T/T, Western Union, D/P
Supply Ability
4000 Square Meter/Square Meters per Day aluminum honeycomb core
Product Description

Aluminum Honeycomb Core for Door Filling and Cabinet Filling



Aluminium honeycomb is a lightweight material with good mechanical properties: lightweight, stiffness, fire resistance, compression, shear and corrosion resistance, flatness. Aluminium honeycomb has applications in different sectors. As core material, aluminium honeycomb is the central layer of sandwich panels. Sandwich panels with aluminium honeycomb core can be used as floors, ceilings, doors, partitions, facades, working surfaces for automatic machines and for all products that require an optimal stiffness-to-weight-ratio.



Advantages:

  • lightweight
  • stiffness
  • fire resistance
  • compression, shear and corrosion resistance
  • flatness

Mechanical Properties:

• Lightweight
• Stiffness
• Fire resistance
• Compression, shear and corrosion resistance flatness

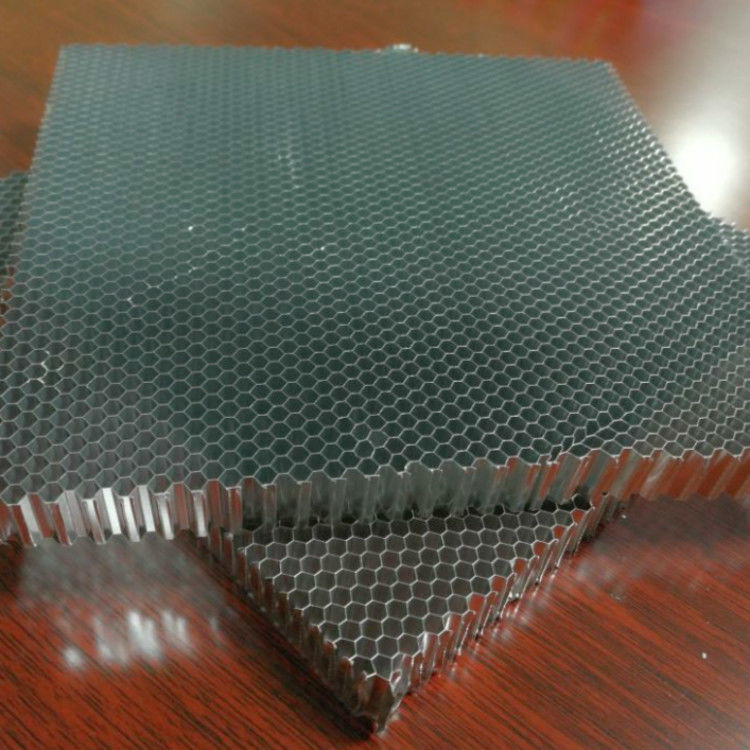

0.08mm Thickness Aluminum Honeycomb Core For Door And Cabinet Filing 0
Aluminum Foil Material A1100, A3003, A5052, A3104
Avaliable Foil Thickness 0.04-0.15 mm
Node 1-20 mm
Diameter/Cell Size 1.7-35 mm
Core Thickness/Cutting Height 3.5-200mm
Shape rectangle, triangle, rhombus, trapezoid
Regular Surface Treatment Powder Coating, Anodized, Electrophoreses, etc.
Applications network for traffic guidance light, crystal lattice for electric heater, laser-beam cutter panel for testile machine, separator for illmination, guidance for water and gas purification, cooling agent carrier for air conditioner, refrigerator and air purification, shielding screen, heat insulation screen, etc.
Customerization(MTM) Yes (color, surface texture, size, shape, pattern, etc.)



Supplied form:

  • unexpanded block
  • unexpanded slices
  • as expanded sheets
  • expanded drilled honeycomb.



Available Dimensions and Tolerances



wdtcolumn STANDARD MAXIMUM TOLERANCE
Ribbon (L) 48 inches (1220 mm) 72 inches | (1829 mm) +2.0/-0.0 inches | +50.8 / -0.0 mm
Transverse (W) 96 inches (2440 mm) 354 inches (9000 mm) +4.0 / -0.0 inches (+101.6 / -0.0 mm)
Thickness (T) Block N/A 34.5 inches (876 mm) +1.0 / -0.0 inches (+25.4/ -0.0 mm)
Thickness (T) Slice Up to 4 inches (102mm) T Up to 4 inches (102mm) T ±0.004- (±0.1 mm)
Expanded Panel Over 4 inches (102mm) T Over 4 inches (102mm) T ±0.062- (±1.575 mm)
Density See Product Availability Chart See Product Availability Chart ± 15%
Cell Size See Product Availability Chart See Product Availability Chart ± 15%



FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer.

Q: How long is your delivery time?
A: Generally it is 10-15 days if the raw materials are in stock. or it is 30-45 days if the raw materials are not in stock, based on quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge yet customers are expected to afford the shipping cost.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. .

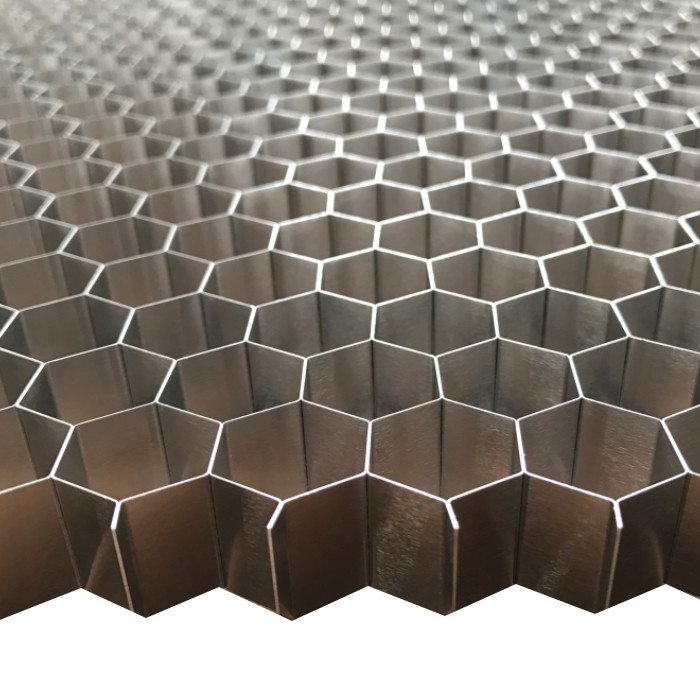

0.08mm Thickness Aluminum Honeycomb Core For Door And Cabinet Filing 1

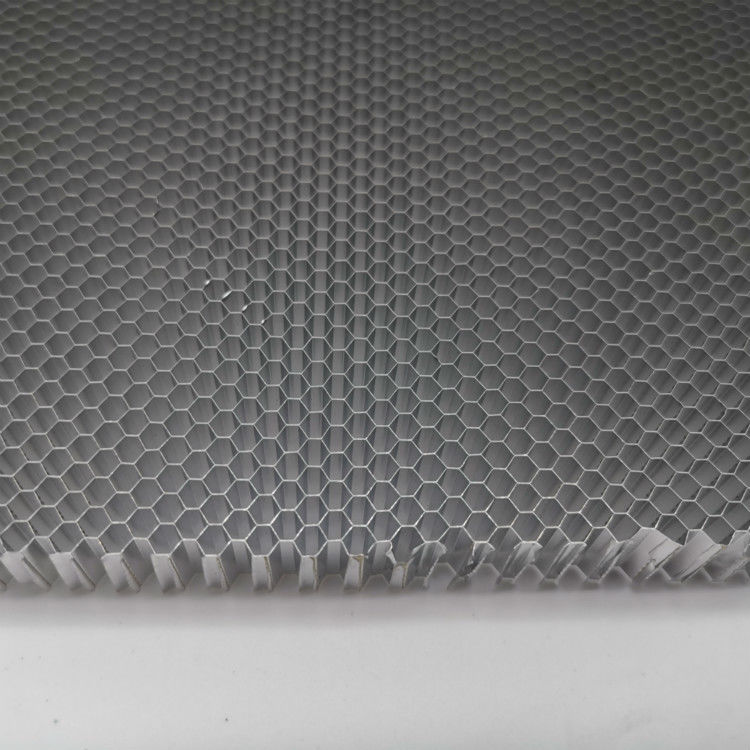

0.08mm Thickness Aluminum Honeycomb Core For Door And Cabinet Filing 2
