Place of Origin:
Guangdong China
Brand Name:
WDF
Certification:
ISO
Model Number:
WDF-AHC
Contact Us

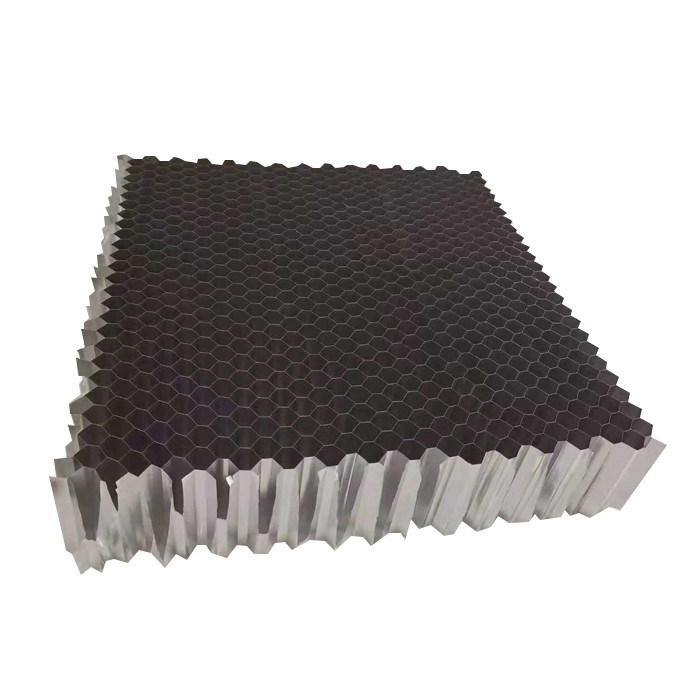

Lightweight Aluminum Honeycomb Sheets Fireproof Aluminium Honeycomb Cores for Honeycomb Panels
Aluminium honeycomb is used for several of applications (i.e. for tool machines, for serigraphy..etc.) and in different sectors such as: public transport industry,nautical sector, building industry, etc...
Honeycomb thickness ranges from 3 to 300 mm, cell size (from 3.2 to 25.4 mm) and aluminum foil density (depends on foil’s thickness and on cell size)
Advantages:
Mechanical Properties:
• Lightweight
• Stiffness
• Fire resistance
• Compression, shear and corrosion resistance flatness
| Aluminum Foil Material | A1100, A3003, A5052, A3104 |
| Avaliable Foil Thickness | 0.04-0.15 mm |
| Node | 1-20 mm |
| Diameter/Cell Size | 1.7-35 mm |
| Core Thickness/Cutting Height | 3.5-200mm |
| Shape | rectangle, triangle, rhombus, trapezoid |
| Regular Surface Treatment | Powder Coating, Anodized, Electrophoreses, etc. |
| Applications | network for traffic guidance light, crystal lattice for electric heater, laser-beam cutter panel for testile machine, separator for illmination, guidance for water and gas purification, cooling agent carrier for air conditioner, refrigerator and air purification, shielding screen, heat insulation screen, etc. |
| Customerization(MTM) | Yes (color, surface texture, size, shape, pattern, etc.) |
Supplied form:
Available Dimensions and Tolerances
| wdtcolumn | STANDARD | MAXIMUM | TOLERANCE |
|---|---|---|---|
| Ribbon (L) | 48 inches (1220 mm) | 72 inches | (1829 mm) | +2.0/-0.0 inches | +50.8 / -0.0 mm |
| Transverse (W) | 96 inches (2440 mm) | 354 inches (9000 mm) | +4.0 / -0.0 inches (+101.6 / -0.0 mm) |
| Thickness (T) Block | N/A | 34.5 inches (876 mm) | +1.0 / -0.0 inches (+25.4/ -0.0 mm) |
| Thickness (T) Slice | Up to 4 inches (102mm) T | Up to 4 inches (102mm) T | ±0.004- (±0.1 mm) |
| Expanded Panel | Over 4 inches (102mm) T | Over 4 inches (102mm) T | ±0.062- (±1.575 mm) |
| Density | See Product Availability Chart | See Product Availability Chart | ± 15% |
| Cell Size | See Product Availability Chart | See Product Availability Chart | ± 15% |
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the raw materials are in stock. or it is 30-45 days if the raw materials are not in stock, based on quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge yet customers are expected to afford the shipping cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. .
