Product Details:
|
| Thickness: | 6mm, 10mm, 20mm, 25mm, 30mm Or Customized Made | Width: | Upto 2000mm |
|---|---|---|---|
| Length: | Upto 6000mm | Fire Resistance: | A Grade |
| Coating: | Pre-Painted/Roller Coating, Painting | Surface Treatment: | PVDF, PE/Polyester, Wooden, Brushed, Polished |
| Edge Processing: | Edge Closed Or Edge Open | Texture: | Wood Look |
| High Light: | Aluminium Honeycomb Composite Panels,Furniture Honeycomb Composite Panels |
||

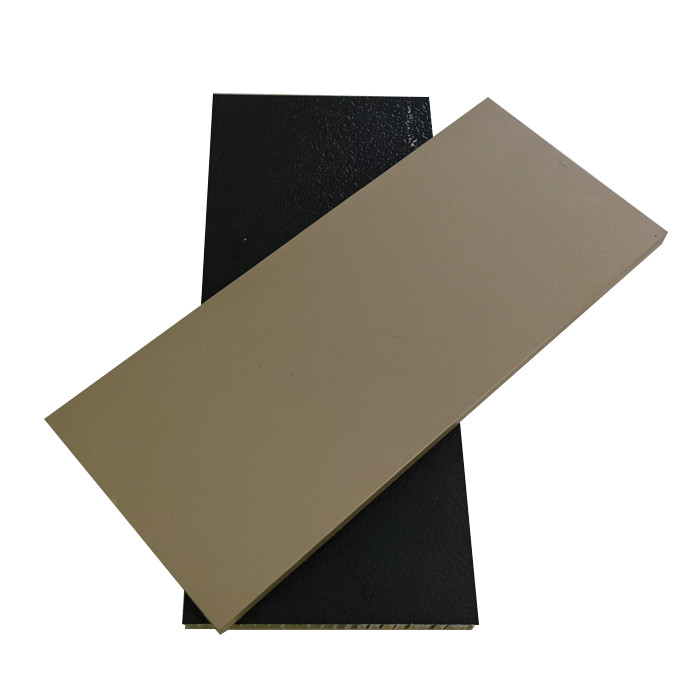

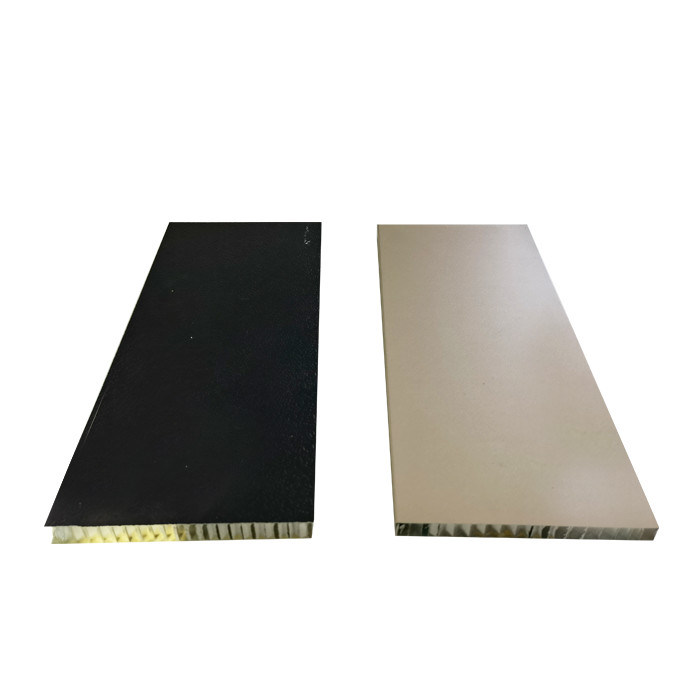

Wood Feature Aluminium Honeycomb Composite Panels for furniture and Cabinet
WDF aluminum Honeycomb panels are highly appreciated by designers. Ultralight, with outstanding dimensional stability and available in a variety of coatings, they allow unlimited creativity in design. They have multiple applications (tables, seats, countertops, separating walls, etc.) according to the sector, from shipyards, yachts, and railways, to shops’ interiors, etc.

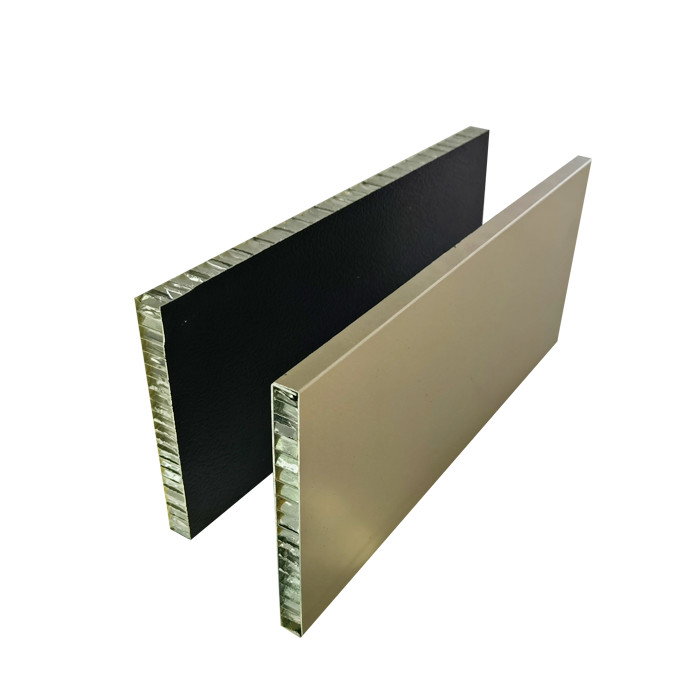

Structure:Aluminum Skin+Aluminum Honeycomb Core+Aluminum Skin
| Availability |
| Standard Dimensions |
|
1200*2400mm (other dimensions available on request) |
| Panel Thickness |
| Made to order,thickness 6mm to 200mm |
| Standard Skin Thickness |
|
0.5mm,0.7mm ,0.8mm & 1.0mm |
At a Glance:
|
RODUCT NAME
|
Aluminum honeycomb panel/metal honeycomb panel/honeycomb sandwich panel
|
|
SKIN MATERIALS
|
aluminum, fiberglass, zinc, carbon fiber, galvanized sheet
|
|
THICKNESS
|
4-200mm
|
|
STANDARD SIZES
|
1250x2500mm, 1500x4800mm
|
|
MAX SIZES
|
1650x12,000mm, 2000x3000mm
|
|
TEMPERATURE RANGE APPLIED
|
-40° to 117°
|
|
FINISH
|
mill finish, RAL colors, wood/stone pattern,anodized, brush,mirror
|
|
STANDARD
|
CN, BS, ASTM
|
|
CAPACITY
|
50K m2/month
|
1. Super flatness even for big size panel up to 2200x11800mm.
2. Light weighte.
3. High fire retardant property as per GB8624 to be classified as A2 & pass BS476 part 4 testing
4. Aluminium honeycomb panel is available in different colors and surface to meet different design requirements.
5. Generally aluminium honeycomb panel is prefabricated as per drawing from customerWDF aluminum honeycomb panels structures deliver:
WDF offers many manufacturing capabilities that can provide a unique sandwich panel solution for your application.
WDF Factory Look
