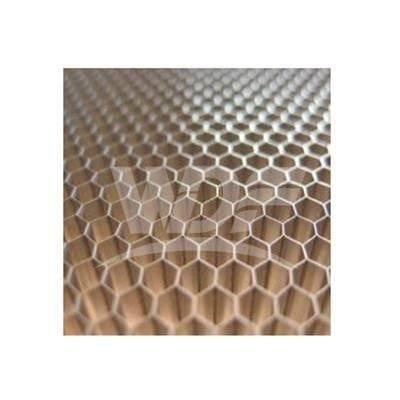

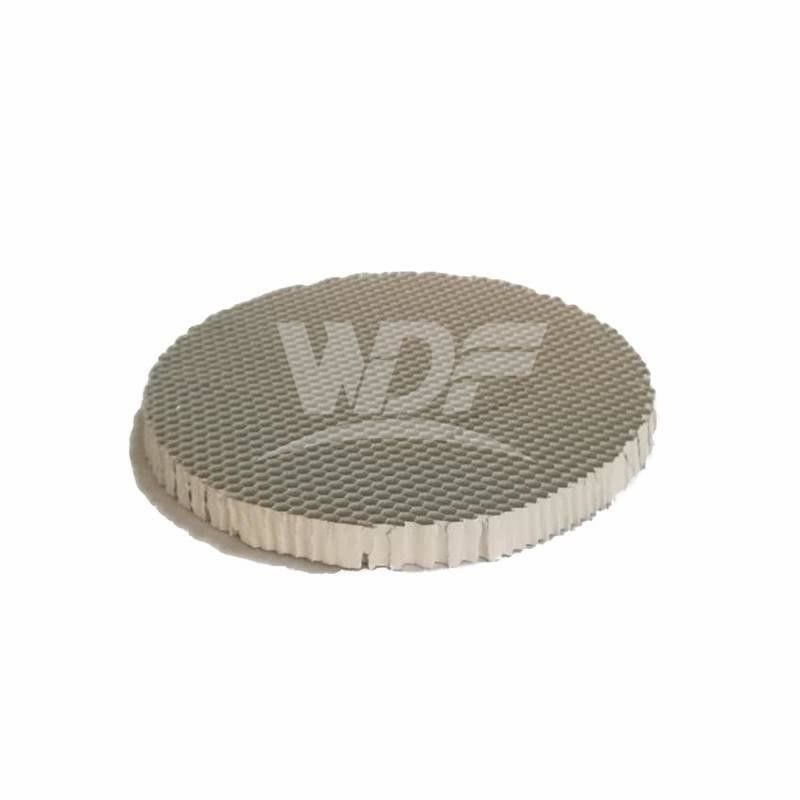

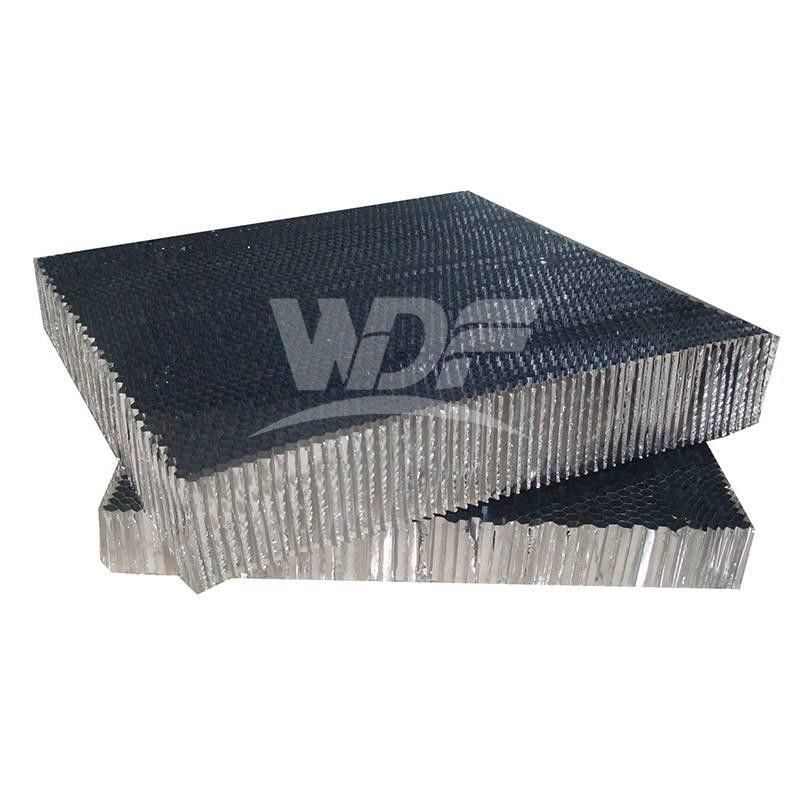

Expanded 3003 Series Aluminum Honeycomb Core For Composite Panels

Expanded 3003 Series Aluminum Honeycomb Core For Composite Panels

3003 Series Aluminum Honeycomb Core

Expanded Aluminum Honeycomb Core

Place of Origin:

Guangdong China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Aluminum Alloy
Foil Thickness:
Cell Size::
Customized By Customer
Aluminum Alloy Grade:
Surface Treatment:
Anodized, Brushed, Foil Decoration, Mirror, PVDF Coated, Perforated
Doors, Flooring, Ceilings, Partitions, Cleanroom Panel
Supply Conditions:
Unexpanded Form
Indoor & Outdoor
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
standard Seaworhty pallet or upon customer request
Delivery Time
7-20 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
4000 Square Meter/Square Meters per Day aluminum honeycomb core
Product Description

Expanded 3003 Series Aluminum Honeycomb Core for Composite Panels (3003 & 5052)



The Aluminum Honeycomb Core is formed by fully expanding a stack of heat-bonded aluminum foil. Our
aluminum honeycomb core has very clear apertures andsharp edges, especially suitable for high-grade panels and
other purposes.

mechanical properties:
• Lightweight
• Stiffness
• Fire resistance
• Compression, shear and corrosion resistance flatness


Expanded 3003 Series Aluminum Honeycomb Core For Composite Panels 0
Material type A1100, A3003, A5052
Foil thickness 0.04, 0.05, 0.06, 0.07, 0.08, 0.1, 0.2mm
Cell side length 1.0, 1.5, 2, 2.5, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20mm
Max. width 1600 mm


Supplied form:

Expanded or unexpanded.

Full blocks or cut slices.

Perforated or un perforated.

Corrosion treated or untreated.




A3003 aluminum honeycomb uses include air/light directionalization, energy absorption, tooling, ceiling and floor panels,

counter tops and other applications for which elevated physical and mechanical properties are not required.

In railway industry:



-Energy absorbers/bumpers




In maritime industry:

-Commercial vessels and naval vessel bulkheads

-Wall ceiling and partition panels


Other applications that are not transportation related:

-Clean room panels

-Exterior architectural curtain wall panels

-Air, water, fluid, and light directionalisation

-Heating, ventilation, air conditioning equipment and devices

-Skis and snowboards

-Energy absorption protective structures

-Electric shielding enclosures

-Acoustic attenuation materials

NOTE: Special dimensions, sizes, tolerances, CNC machining and die cut to size can be provided upon request.
