Product Details:
|
| Foil Thickness: | 0.02,0.03,0.04,0.05,0.06,0.07,0.08,0.09,0.1 | Cell Size:: | 3mm-34mm |
|---|---|---|---|
| Specification: | Dia 50mm/60mm/100mm | Aluminum Alloy Grade: | A3003,A5052 |
| Surface Treatment: | Anodized, Brushed, Foil Decoration, Mirror, PVDF Coated, Perforated | Application: | Making Sandwich Panels |
| Usage: | Indoor & Outdoor | Corrosion: | Treated Or Untreated |
| High Light: | Block Unexpanded Aluminum Honeycomb Core,50 Microns Aluminum Honeycomb Core |
||

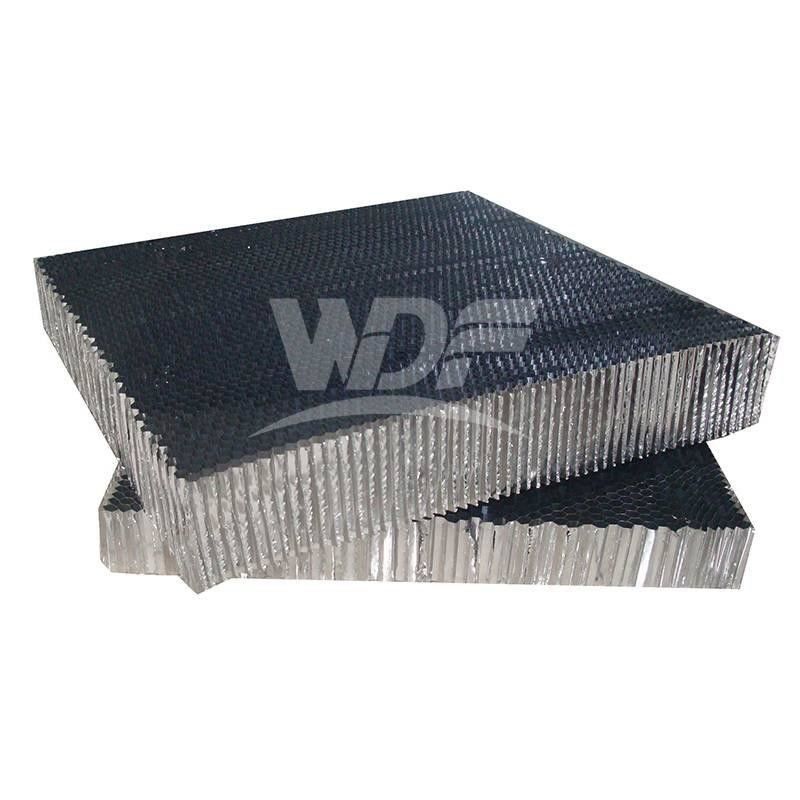

Block Unexpanded Aluminum Honeycomb Core for Composite Panel
Mechanical properties:
• Lightweight
• Stiffness
• Fire resistance
• Compression, shear and corrosion resistance flatness
Supplied form:

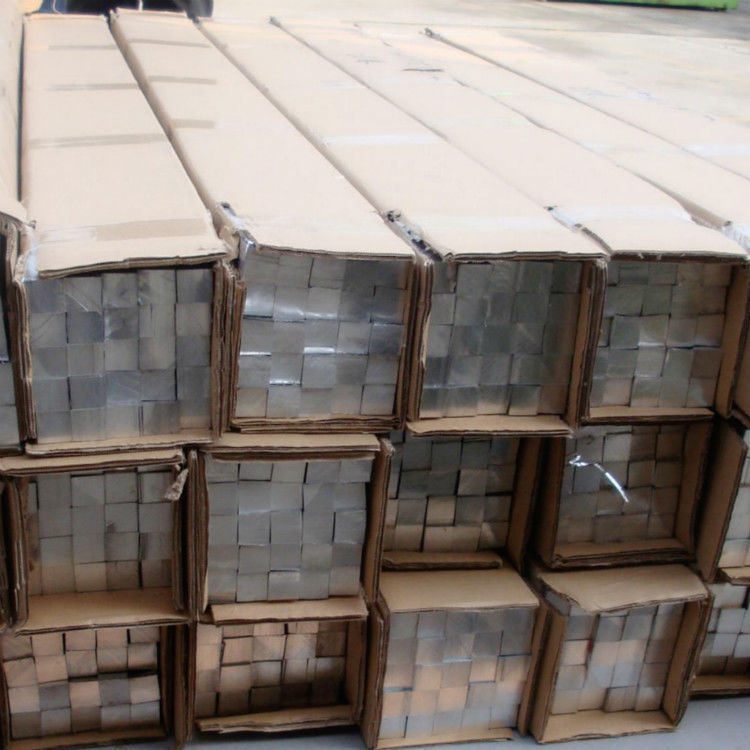

Expanded or unexpanded.
Full blocks or cut slices.
Perforated or un perforated.
Corrosion treated or untreated.
Our aluminum honeycomb is adhesive-bonded of the aluminum foil, which produces one of the highest strength and the highest
surface-to –volume ratio of any structural material. Our aluminum honeycomb is made from 3003H18 and 5052H18 aluminum alloy foil.
Honeycomb core’s properties |
50 Microns |
||||
Aluminium Alloy series 3000 |
3003/3005/3103/3104 |
||||
Ø honeycomb in mm ca. |
3,8 |
6 |
9 |
12 |
19 |
Ø honeycomb in inches |
1/8" |
1/4" |
3/8" |
1/2" |
3/4" |
Density kg/m3 |
112 |
56 - 59 |
39 - 40 |
29 - 30 |
20 - 21 |
Compressive stabilised
|
6,8 |
3,0 - 3,5 |
1,4 - 1,95 |
0,8 - 0,95 |
0,4 - 0,6 |
| thickness’ tolerance mm | ± 0,1 ( ± 0,05 on request ) | ||||
| dimension’s tolerance mm | ± 30 | ||||
| maximum use temperature °C | 180° | ||||
|
Alloy 3000/3003/3005/3103/3104 aluminium honeycomb is sold perforated or non perforated |
|||||
Applications:
Aluminum Honeycomb Core is widely used in electronic and industrial field which is including as below.
