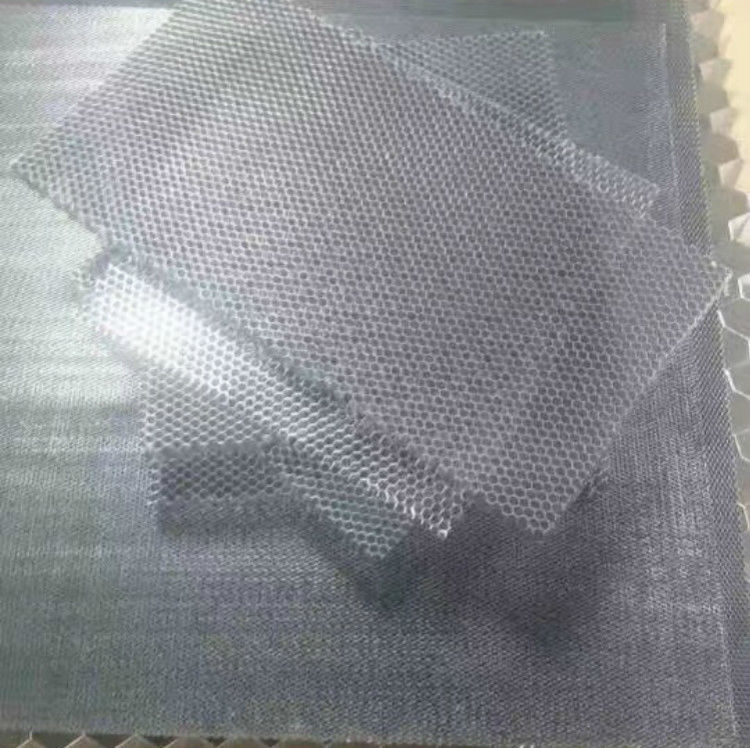

High Strength Aluminum Honeycomb Core A1100 A3003 A3104 Lightweight

High Strength Aluminum Honeycomb Core A1100 A3003 A3104 Lightweight

High Strength Aluminum Honeycomb Core

A1100 Aluminum Honeycomb Core

Place of Origin:

Guangdong China

Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Rectangle, Triangle, Rhombus, Trapezoid
Fire Resistance:
A Grade
Node Size:
1mm To 20mm, Customized Made
Expanded Size:
600*600mm, 1220*2440mm, Customized Made
Chemical Finish:
Paingting, Powder, Anodized, Electrophoreses
Foil Thickness:
0.04mm To 0.15mm, Customized Made
Traffic Light
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
standard Seaworhty pallet or upon customer request
Delivery Time
7-20 working days depending on qty
Payment Terms
L/C, T/T, Western Union
Supply Ability
4000 Square Meter/Square Meters per Day aluminum honeycomb core
Product Description

Lightweight High Strength Aluminum Honeycomb Core Used For Laser Beds And Tables

The aluminum honeycomb core is composed by multi-layer aluminum foil, honeycomb is formed after fully expanded. Our aluminum honeycomb core has sharp and clear hole surface, and it is suitable for adhering to high grade plate as well as other purposes. At present, two types of product we mainly produced are micro-aperture aluminum core and normal.

Supply conditions:

1.Expanded or unexpanded
2.Full blocks or cut slices
3.Perforated or imperforated
4.Corrosion treated or untreated
5.Die cut size or typical products


High Strength Aluminum Honeycomb Core A1100 A3003 A3104 Lightweight 0


Our aluminum honeycomb is adhesive-bonded of the aluminum foil, which produces one of the highest strength and the highest

surface-to –volume ratio of any structural material. Our aluminum honeycomb is made from 3003H18 and 5052H18 aluminum alloy foil.


Aluminum Foil Material A1100, A3003, A5052, A3104
Avaliable Foil Thickness 0.04-0.15 mm
Node 1-20 mm
Diameter/Cell Size 1.7-35 mm
Core Thickness/Cutting Height 3.5-200mm
Shape rectangle, triangle, rhombus, trapezoid
Regular Surface Treatment Powder Coating, Anodized, Electrophoreses, etc.
Applications network for traffic guidance light, crystal lattice for electric heater, laser-beam cutter panel for testile machine, separator for illmination, guidance for water and gas purification, cooling agent carrier for air conditioner, refrigerator and air purification, shielding screen, heat insulation screen, etc.
Customerization(MTM) Yes (color, surface texture, size, shape, pattern, etc.)

Why Aluminium? It has several benefits including:

  • It is light-weight – 1/3 the weight of steel
  • It is strong, corrosion-resistant and a good conductor of heat and electricity
  • 100% recyclable, without any loss of its natural qualities
  • It is easy to shape, form and fabricate
  • Aluminium does not burn – it melts at 650 degrees centigrade
  • When alloyed with another metal like Silicon or Magnesium, it can be stronger than Steel

High Strength Aluminum Honeycomb Core A1100 A3003 A3104 Lightweight 1

Why choose WDF?


1:We produce honeycomb panel with more than 10 years experience.

   We have professional team to offer clients total solution from design to finish, provide customer individual care.


2.Overall control over the whole production process from aluminum coils to finished panels.

   We have production base of aluminum coils, honeycomb cores, aluminum sheet and composite panels.


3.Our team is dynamic, young, motivated, customer-oriented and diverse and you can reach us at 24/7.


4.Our products are tested , so you can rest assured that our quality is guaranteed.

High Strength Aluminum Honeycomb Core A1100 A3003 A3104 Lightweight 2
